  6. Locking Connector, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Yellow

This item is Discontinued.

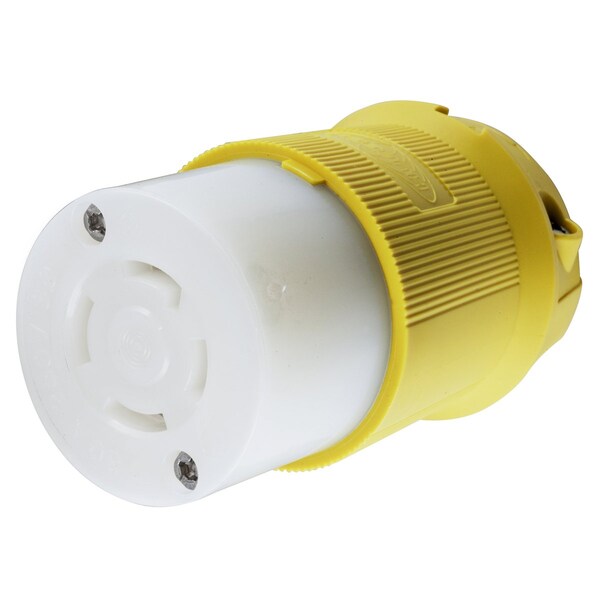

Hubbell Wiring Device-Kellems Locking Connector, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Yellow HBL27CM23

Locking Connector, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Yellow (Discontinued)

  • Mfr # HBL27CM23
  • Zoro # G800701227
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL27CM23
Zoro #
G800701227
UPC #
783585039589
Country of Origin
United States

Dimensions

Height
3.86 in
Display Size
Standard
Width
2.33 in
Wire Size
#16 AWG to #8 AWG
Length
2.33 in
Dimensions
2.33 in x 2.33 in x 3.86 in
For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
No Cap
Standards
CSA C22.2 No.42, UL 498
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant
IP Rating
IP20
Body Material
Natural White Nylon
Material
.031" (.8) Brass
Special Features
Terminals identified in accordance with UL 498
Application
Heavy Duty Industrial/Marine
Temp. Rise
Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Dielectric Strength
Withstands 2,000V minimum
Weight
0.4
Flame Resistant
HB or better per UL94 or CSA 22.2 No. 0.6
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
0.350"-1.150" (9-29)
Cable Range
0.350 - 1.150 in
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
Listed to UL 498 Fed.Spec. W-C-596 Certified to CSA C22.2 No.42
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Environmental Conditions
Corrosion Resistant
Insulation
Insulated Body

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Marine Grade,Female Connector Body, 30A 3-Phase Delta 250V AC, 3-Pole 4-WireGrounding, L15-30R, Screw Terminal, Yellow
