  11. Locking Connector, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

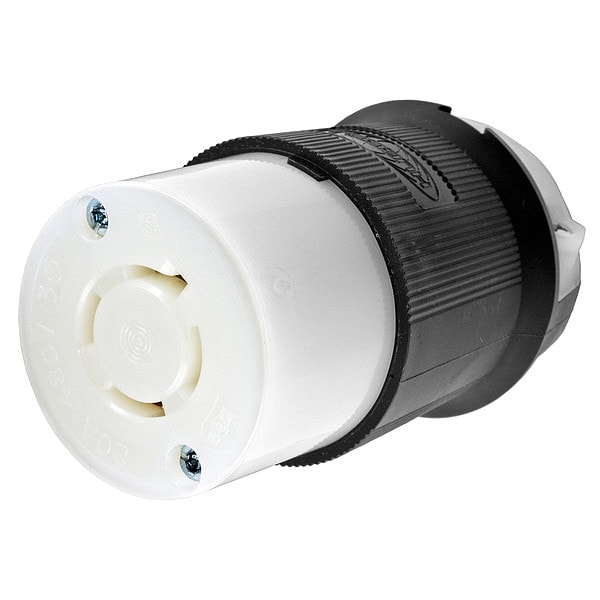

Hubbell Wiring Device-Kellems Locking Connector, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White HBL2433 - main

Locking Connector, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # HBL2433

  • Zoro # G3474746

product price: $56.99
/ea

Key Features

NEMA Receptacle Configuration
L16-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2433
Zoro #
G3474746
UPC #
783585038292
Country of Origin
United States

Dimensions

Cord Size
0.350 in to 1.150 in
Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
For Minimum Cable Diameter
0.35 in
Overall Length
2.33 in
For Maximum Cable Diameter
1.15 in
Outside Diameter
2.33 in
Height
3.86 in
Width
2.33 in
Dimensions
2.33 in x 2.33 in x 3.86 in
Wire Size
#16 AWG to #8 AWG
Length
2.33 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L16-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified C22.2 No.42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
Material
Nylon
Boot Code
C
Grade
Industrial
IP Rating
IP20
Special Features
Terminals identified in accordance with UL 498
Body Material
Natural White Nylon
For Environment
Dry
Maximum Operating Temperature
75 Degrees C
Market
Industrial
For Location
Indoor
Power Indicating Light
No
Contact Material
Brass
UL 94 Flammability Rating
HB
Midget Locking
No
Housing Material
Nylon
Horsepower Rating
5 hp
Minimum Operating Temperature
-40 Degrees F
Weight
0.35
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Dielectric Strength
Withstands 2,000V minimum
Application
Heavy Duty Industrial
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Material - Mounting Hardware
Cord Mounted
Insulation
Insulated Body
Cord Range
0.350"-1.150" (9-29)
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating
20 A
Antimicrobial
No
Power Indicator
No

Description

The HUBBELL 20A Twist-Lock Connector (L16-20R) is a locking connector suitable for use in industrial and commercial electrical applications. It features a three-pole, four-wire configuration rated for 480V AC and 20 amps. The connector utilizes a natural white nylon body with black and white housing, with impact-resistant construction intended for indoor dry locations.


Key Features of the HUBBELL 20A Twist-Lock Connector:

  • Amperage/Voltage Rating: Rated for 20 A at 480V AC, three-phase power.

  • NEMA Configuration: L16-20R twist-lock design provides a locking mechanism to help maintain connection integrity.

  • Cable Range: Accepts cord diameters from 0.350 in to 1.150 in; accommodates #16 AWG to #8 AWG stranded copper wire only.

  • Body Material: Constructed from impact-resistant nylon with an insulated body.

  • Wire Connection Type: Screw terminals with funnel-shaped entry; terminals identified per UL 498 standards.

  • Performance Ratings: Rated dielectric voltage: 2,000V minimum; maximum continuous operating temperature: 75°C; minimum operating temperature (without impact): -40°C.

  • Protection Features: Integral dust shield covers wiring chamber; IP20 rated for indoor use unless additional protection is provided.

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and listed to UL 498 requirements.
