  11. Locking Connector, L19-20R, 20 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

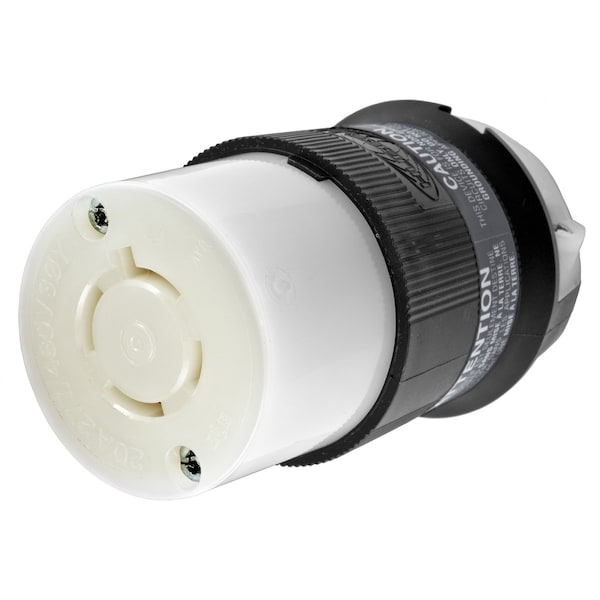

Hubbell Wiring Device-Kellems Locking Connector, L19-20R, 20 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White HBL2453 - main

Locking Connector, L19-20R, 20 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

  • Mfr # HBL2453

  • Zoro # G000701249

product price: $62.93
/ea

Key Features

NEMA Receptacle Configuration
L19-20R
Current Rating
20 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2453
Zoro #
G000701249
UPC #
783585038407
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Height
3.86 in
Length
2.33 in
Width
2.33 in
Dimensions
2.33 in x 2.33 in x 3.86 in
Wire Size
#16 AWG to #8 AWG

Details

Item
Locking Connector
NEMA Receptacle Configuration
L19-20R
Current Rating
20 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
Cap Type
No Cap
IP Rating
IP20
Standards
CSA C22.2 No. 49, UL Standard 62
Resistance Properties
Chemical Resistant, Impact Resistant
Material
.031" (.8) Brass
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Body Material
Black nylon
Application
Heavy Duty Industrial
Dielectric Strength
Withstands 2,000V minimum
Weight
0.35
Flame Resistant
HB or better per UL94 or CSA 22.2 No. 0.6
Cord Range
0.350"-1.150" (9-29)
Material - Mounting Hardware
Cord Mounted
Insulation
Insulated Body
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 20A 3-PhaseWye 120/208V AC, 4-Pole 4-Wire Non-Grounding, L19-20R, Screw Terminal, Black and White
