  6. Locking Connector, L19-30R, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

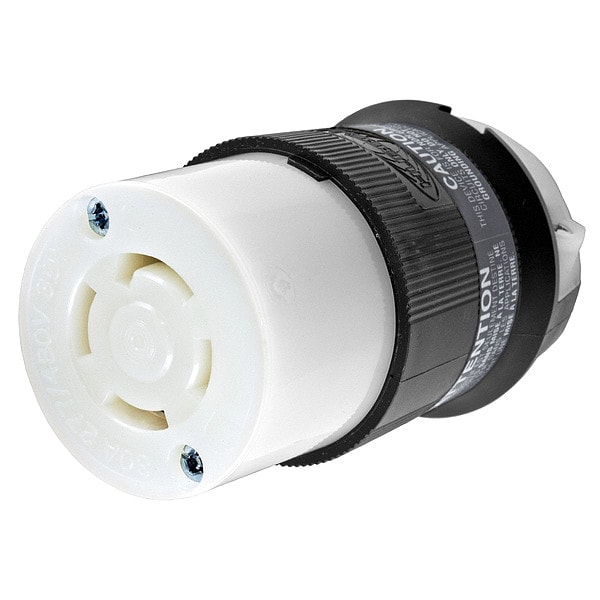

Hubbell Wiring Device-Kellems Locking Connector, L19-30R, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White HBL2763 - main

Locking Connector, L19-30R, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

  • Mfr # HBL2763

  • Zoro # G1715323

product price:  $121.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L19-30R
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL2763
Zoro #
G1715323
UPC #
783585039480
Country of Origin
United States

Dimensions

Cord Size
0.350 in to 1.150 in
For Maximum Cable Diameter
1.15 in
Overall Length
2.33 in
For Minimum Cable Diameter
0.35 in
Minimum Wire Size
16 AWG
Outside Diameter
2.33 in
Maximum Wire Size
8 AWG
Dimensions
2.33 in x 2.33 in x 3.86 in
Length
2.33 in
Height
3.86 in
Wire Size
#16 AWG to #8 AWG
Width
2.33 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L19-30R
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
IP Rating
IP20
Material
Nylon
Grade
Industrial
Boot Code
C
Body Material
Natural White Nylon
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Midget Locking
No
For Location
Indoor
Housing Material
Nylon
UL 94 Flammability Rating
HB
For Environment
Dry
Contact Material
Brass
Horsepower Rating
10 hp
Market
Industrial
Power Indicating Light
No
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
75 Degrees C
Weight
14.15
Flame Resistant
HB or better per UL94 or CSA 22.2 No. 0.6
Dielectric Strength
Withstands 2,000V minimum
Insulation
Insulated Body
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Cord Range
0.350"-1.150" (9-29)
Amperage Rating
30 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Heavy Duty Industrial
Material - Mounting Hardware
Cord Mounted
Power Indicator
No
Antimicrobial
No

Description

• Ribbed nylon housing provides a secure grip and impact and chemical resistance.
• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.
