  11. Locking Connector, L22-20R, 20 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

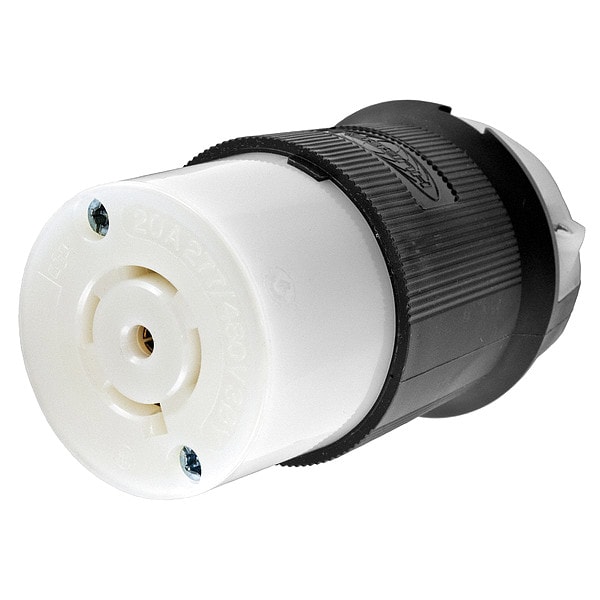

Hubbell Wiring Device-Kellems Locking Connector, L22-20R, 20 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White HBL2523 - main

Locking Connector, L22-20R, 20 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

  • Mfr # HBL2523

  • Zoro # G3289711

product price: $85.39
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L22-20R
Current Rating
20 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2523
Zoro #
G3289711
UPC #
783585038605
Country of Origin
United States

Dimensions

Cord Size
0.350 in to 1.150 in
Overall Length
2.33 in
Outside Diameter
2.33 in
For Minimum Cable Diameter
0.35 in
Maximum Wire Size
8 AWG
For Maximum Cable Diameter
1.15 in
Minimum Wire Size
16 AWG
Width
2.33 in
Dimensions
2.33 in x 2.33 in x 3.86 in
Wire Size
#16 AWG to #8 AWG
Height
3.86 in
Length
2.33 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L22-20R
Current Rating
20 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified C22.2 No. 42, Fed. Spec. W-C-596, UL 498
Resistance Properties
Impact Resistant
IP Rating
IP20
Grade
Industrial
Material
Nylon
Boot Code
C
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Body Material
Natural White Nylon
Power Indicating Light
No
Midget Locking
No
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Horsepower Rating
10 hp
Maximum Operating Temperature
75 Degrees C
For Location
Indoor
Contact Material
Brass
UL 94 Flammability Rating
HB
Market
Industrial
For Environment
Dry
Dielectric Strength
Withstands 2,000V minimum
Weight
0.4
Flame Resistant
HB or better per UL94 or CSA 22.2 No. 0.6
Material - Mounting Hardware
Cord Mounted
Insulation
Insulated Body
Cord Range
0.350"-1.150" (9-29)
Amperage Rating
20 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Heavy Duty Industrial
Antimicrobial
No
Power Indicator
No

Description

Locking Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L22-20R, Number of Poles 4, Number of Wires 4, Phase Three, Resistance Properties Impact Resistant, Shrouded No, Voltage Rating 277/480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Brass, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.35 in
