  11. Locking Connector, L24-20R, 20 A, 347V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

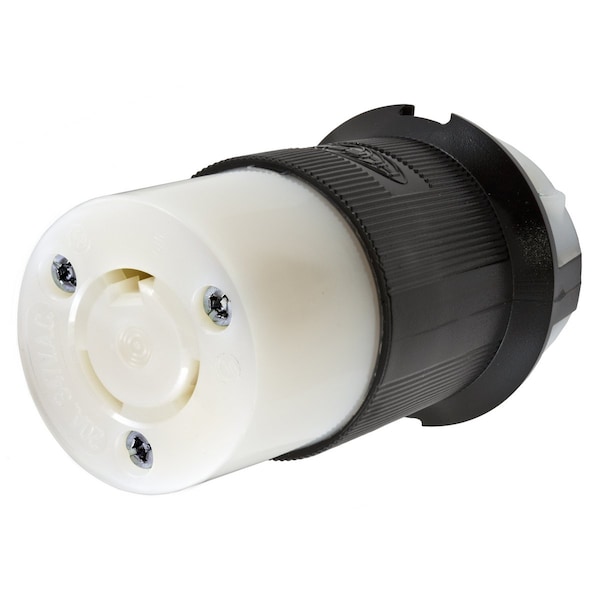

Hubbell Wiring Device-Kellems Locking Connector, L24-20R, 20 A, 347V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL3723 - main

Locking Connector, L24-20R, 20 A, 347V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL3723

  • Zoro # G800702354

product price: $46.44
/ea

Key Features

NEMA Receptacle Configuration
L24-20R
Current Rating
20 A
Voltage Rating
347V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL3723
Zoro #
G800702354
UPC #
783585046600
Country of Origin
United States

Dimensions

Length
2.26 in
Dimensions
2.26 in x 2.26 in x 3.86 in
Wire Size
#16 AWG to #8 AWG
Width
2.26 in
Height
3.86 in
For Minimum Cable Diameter
0.36 in
For Maximum Cable Diameter
0.9375 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L24-20R
Current Rating
20 A
Voltage Rating
347V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA C22.2, Fed. Spec. W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
IP Rating
IP20
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Material
Nylon
Application
Heavy Duty Industrial
Dielectric Strength
Withstands 2,000V minimum
Weight
0.4
Flame Resistant
HB or better per UL94 or CSA 22.2 No. 0.6
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body
Cord Range
0.360"-0.930" (9-24)
Material - Mounting Hardware
Cord Mounted

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 20A 347V AC, 2-Pole 3-Wire Grounding, L24-20R,Screw Terminal, Black and White
