  11. Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Gray

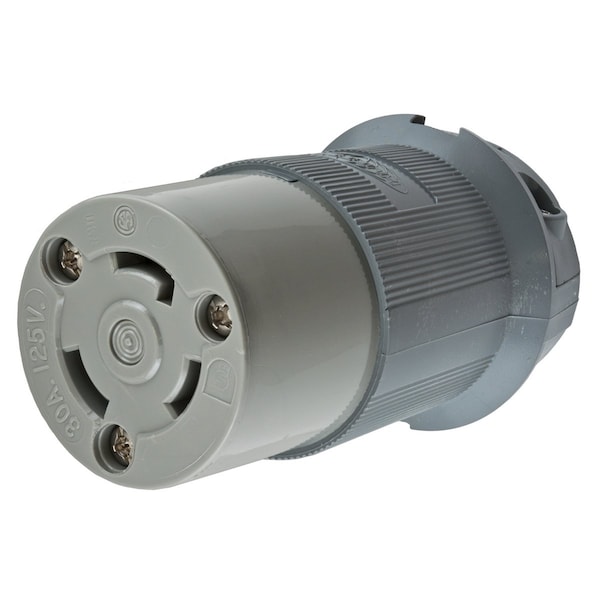

Hubbell Wiring Device-Kellems Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Gray HBL2613F - main

Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Gray

  • Mfr # HBL2613F

  • Zoro # G500702463

product price: $91.19
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2613F
Zoro #
G500702463
UPC #
783585038780
Country of Origin
United States

Dimensions

Dimensions
2.26 in x 2.26 in x 3.86 in
Width
2.26 in
Height
3.86 in
Wire Size
#16 AWG to #8 AWG
Length
2.26 in
For Maximum Cable Diameter
0.9375 in
For Minimum Cable Diameter
0.36 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Gray
Cap Type
No Cap
Standards
CSA C22.2 No.42, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Body Material
Gray Nylon
IP Rating
IP20
Material
.031" (.8) Brass
Application
Heavy Duty Industrial
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Weight
0.4
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Cord Mounted
Insulation
Insulated Body
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Environmental - Terminal Identification - Terminals identified in accordance with UL 498 Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
Cord Range
0.360"-0.930" (9-24)
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
30 A

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, ScrewTerminal, Gray, High Temp Version,
