Shop HUBBELL WIRING DEVICE-KELLEMS

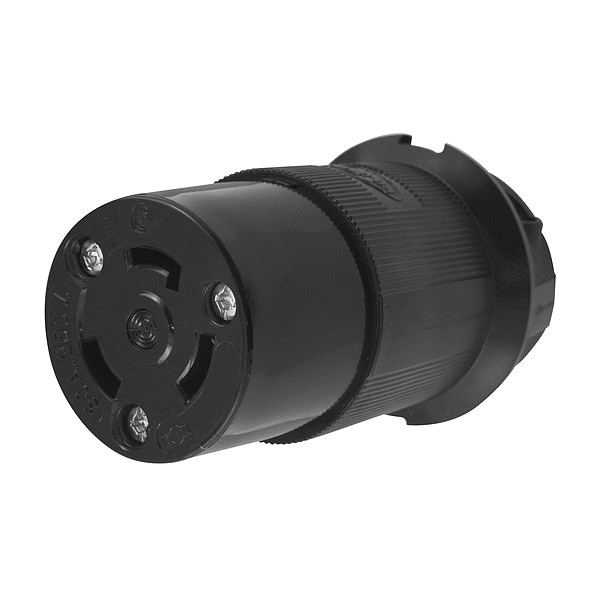

Locking Connector, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL2623BK

  • Zoro # G0855687

product price:
$
77.02
/ea

Key Features

NEMA Receptacle Configuration
L6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL2623BK
Zoro #
G0855687
UPC #
783585172255
Country of Origin
United States
Item
Locking Connector
NEMA Receptacle Configuration
L6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap
Standards
CSA C22.2 No.42, Fed. Spec. W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
IP Rating
IP20
Material
Nylon
Boot Code
B
Grade
Industrial/Commercial
Body Material
Natural White Nylon
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Power Indicating Light
No
Market
Industrial
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
Midget Locking
No
For Environment
Dry
For Location
Indoor
UL 94 Flammability Rating
HB
Dielectric Strength
2,000V minimum
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Weight
0.35
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body
Performance
Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
Cord Range
0.360"-0.930" (9-24)
Amperage Rating
30 A
Application
Heavy Duty Industrial
Power Indicator
No
Antimicrobial
No
Power and Ground Indicating Light
No

Description

• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants
