  11. Locking Connector, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black

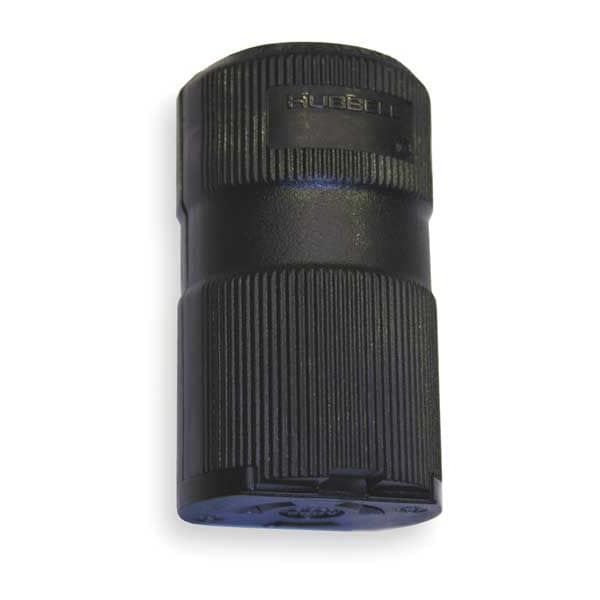

Hubbell Wiring Device-Kellems Locking Connector, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL4779VBK - main

Locking Connector, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL4779VBK

  • Zoro # G3415307

product price: $22.89
/ea

Key Features

NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL4779VBK
Zoro #
G3415307
UPC #
783585043326
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.22 in
Cord Size
0.220 in to 0.660 in
Minimum Wire Size
18 AWG
Overall Length
1.5 in
Outside Diameter
1.5 in
Maximum Wire Size
10 AWG
Wire Size
#18 AWG to #10 AWG
Dimensions
1.50 in x 1.50 in x 2.59 in
Width
1.50 in
Height
2.59 in
Length
1.50 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Fed. Spec. W-C-596, UL 498
Resistance Properties
Impact Resistant
Body Material
Nylon
Material
Brass
Special Features
Terminals identified in accordance with UL 498
Contact Material
Brass
UL 94 Flammability Rating
HB
Housing Material
Nylon
For Environment
Dry
For Location
Indoor
Midget Locking
No
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Insulation Material
Thermoplastic
Dielectric Strength
Withstands 2,000V minimum
Weight
0.15
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Application
Heavy Duty Industrial
Material - Mounting Hardware
Cord Mounted
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Amperage Rating
15 A
Cord Range
0.220"-0.660"(5.6-16.8)
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body
Performance
Electrical - Current Interrupting - Certified for full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG- #10 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Description

• Two captive multiple drive assembly screws
• Totally insulated impact and crush resistant nylon body
• Powerful cord grips prevent conductor slippage and strain on wiring terminals
