  11. Locking Connector, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

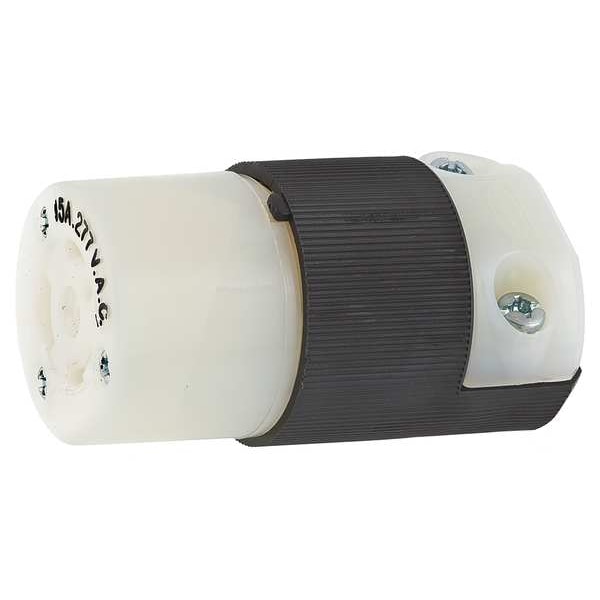

Hubbell Wiring Device-Kellems Locking Connector, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL4779C - main

Locking Connector, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL4779C

  • Zoro # G0730852

product price: $37.80
/ea

Key Features

NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL4779C
Zoro #
G0730852
UPC #
783585171906
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Cord Size
0.230 in to 0.720 in
Overall Length
1.53 in
Minimum Wire Size
18 AWG
Outside Diameter
1.527 in
Maximum Wire Size
10 AWG
Length
1.53 in
Dimensions
1.53 in x 1.53 in x 2.78 in
Width
1.53 in
Height
2.78 in
Wire Size
#18 AWG to #10 AWG

Details

Item
Locking Connector
NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Boot Code
A
Material
Nylon
Body Material
Natural White Nylon
Special Features
Terminals identified in accordance with UL 498
Power Indicating Light
No
Horsepower Rating
2 hp
Midget Locking
No
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Contact Material
Brass
Maximum Operating Temperature
75 Degrees C
UL 94 Flammability Rating
HB
For Location
Indoor
Housing Material
Nylon
Dielectric Strength
Withstands 2,000V minimum
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Weight
0.15
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Cord Range
0.230"-0.720"(5.8-18.3)
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Cord Mounted
Amperage Rating
15 A
Application
Heavy Duty Industrial
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG- #10 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Insulation
Insulated Body
Power Indicator
No
Antimicrobial
No

Description

• Ribbed nylon housing provides secure, impact and chemical resistant grip
• Superior cord grip design protects terminations from excess strain
• Integral VARI-SIZE insert accomodates a wide range of cord diameters
