  6. Locking Connector, L9-20R, 20 A, 600V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

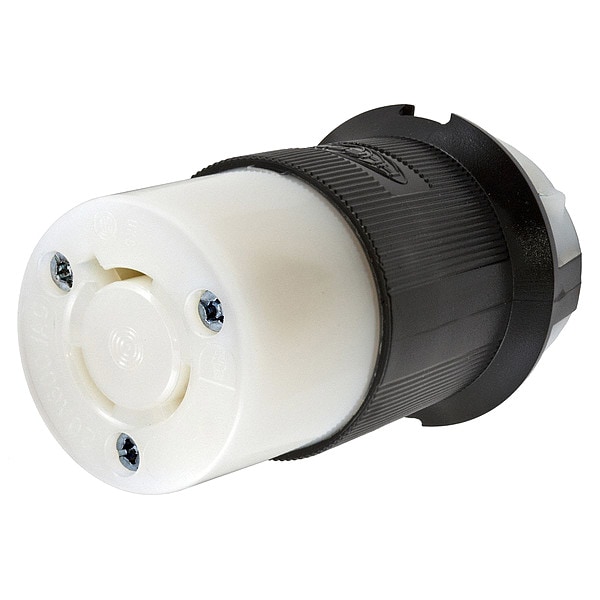

Hubbell Wiring Device-Kellems Locking Connector, L9-20R, 20 A, 600V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL2353 - main

Locking Connector, L9-20R, 20 A, 600V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL2353

  • Zoro # G1529254

product price:  $41.18
/ea

Key Features

NEMA Receptacle Configuration
L9-20R
Current Rating
20 A
Voltage Rating
600V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL2353
Zoro #
G1529254
UPC #
783585038049
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.9375 in
For Minimum Cable Diameter
0.36 in
Cord Size
0.360 in to 0.930 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Overall Length
3.86 in
Outside Diameter
2.26 in
Wire Size
#16 AWG to #8 AWG
Width
2.26 in
Length
3.86 in
Dimensions
3.86 in x 2.26 in x 2.26 in
Height
2.26 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L9-20R
Current Rating
20 A
Voltage Rating
600V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
IP Rating
IP30
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
Boot Code
B
Material
Nylon
Grade
Industrial
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Body Material
Natural White Nylon
Market
Industrial
For Location
Indoor
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
HB
Horsepower Rating
5 hp
Power Indicating Light
No
Contact Material
Brass
Midget Locking
No
Maximum Operating Temperature
75 Degrees C
For Environment
Dry
Weight
0.35
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Dielectric Strength
2,000V minimum
Amperage Rating
20 A
Insulation
Insulated Body
Application
Heavy Duty Industrial
Material - Mounting Hardware
Cord Mounted
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum, -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
0.360"-0.930" (9-24)
Antimicrobial
No
Power Indicator
No

Description

• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants
