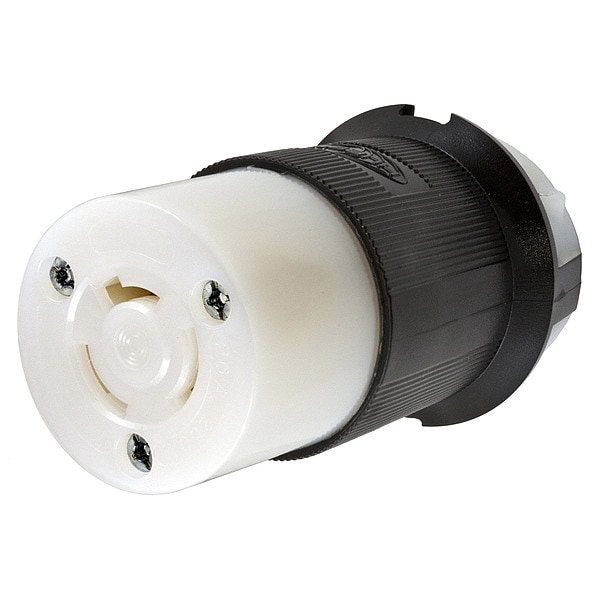

Hubbell Wiring Device-Kellems Locking Connector, Non-NEMA, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL7314GCB - main

Locking Connector, Non-NEMA, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL7314GCB

  • Zoro # G1574772

product price:  $57.65
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL7314GCB
Zoro #
G1574772
UPC #
783585037523
Country of Origin
United States

Dimensions

Cord Size
0.325 in to 0.930 in
Minimum Wire Size
16 AWG
For Maximum Cable Diameter
0.9375 in
Overall Length
1.94 in
For Minimum Cable Diameter
0.36 in
Maximum Wire Size
8 AWG
Length
1.94 in
Dimensions
1.94 in x 1.94 in x 3.61 in
Width
1.94 in
Wire Size
#16 AWG to #8 AWG
Height
3.61 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial/Commercial
IP Rating
IP20
Material
Nylon
Boot Code
B
Body Material
Natural White Nylon
Special Features
Terminals identified in accordance with UL 498
For Location
Indoor
For Environment
Dry
Power Indicating Light
No
Maximum Operating Temperature
75 Degrees C
Midget Locking
No
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Contact Material
Brass
UL 94 Flammability Rating
HB
Market
Industrial
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Dielectric Strength
Withstands 2,000V minimum
Weight
0.35
Amperage Rating
20 A
Material - Mounting Hardware
Cord Mounted
Cord Range
0.360"-0.930" (9-24)
Insulation
Insulated Body
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Application
Heavy Duty Industrial
Antimicrobial
No
Power Indicator
No

Description

• Ribbed nylon housing provides a secure grip and impact and chemical resistance
• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants
