  11. Locking Connector, Non-NEMA, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

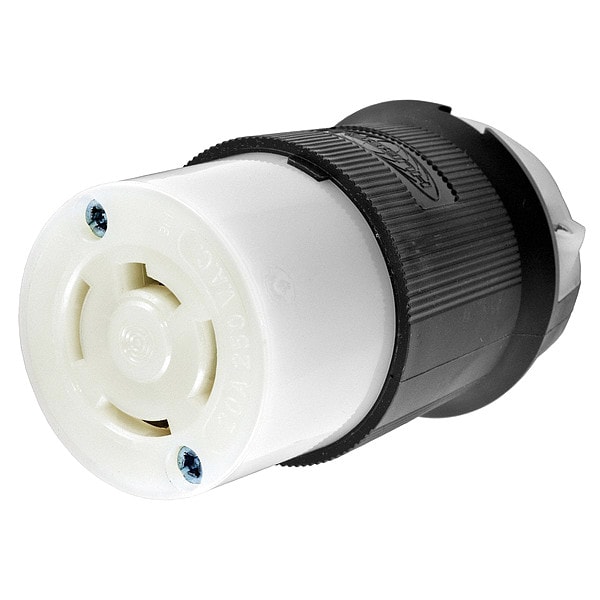

Hubbell Wiring Device-Kellems Locking Connector, Non-NEMA, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White HBL7413GCB - main

Locking Connector, Non-NEMA, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # HBL7413GCB

  • Zoro # G1239637

product price: $65.35
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7413GCB
Zoro #
G1239637
UPC #
783585037592
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Cord Size
0.350 in to 1.150 in
Outside Diameter
2.33 in
Overall Length
2.33 in
Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#16 AWG to #8 AWG
Length
2.33 in
Width
2.33 in
Dimensions
2.33 in x 2.33 in x 3.86 in
Height
3.86 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
IP Rating
IP20
Standards
CSA Listed, UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
Grade
Industrial
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Body Material
Natural White Nylon
Midget Locking
No
Power Indicating Light
No
Maximum Operating Temperature
75 Degrees C
UL 94 Flammability Rating
HB
Housing Material
Nylon
For Environment
Dry
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
Market
Industrial
Dielectric Strength
Withstands 2,000V minimum
Flame Resistant
HB or better per UL94 or CSA 22.2 No. 0.6
Weight
0.45
Material - Mounting Hardware
Cord Mounted
Insulation
Insulated Body
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
0.350"-1.150" (9-29)
Amperage Rating
20 A
Application
Heavy Duty Industrial
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Antimicrobial
No
Power Indicator
No

Description

The HUBBELL 20A Locking Connector is an industrial connector rated for use in specified environments. It features a ribbed nylon housing; see specifications for material properties and resistance to impact and chemicals, as well as an insulated body with screw terminals suitable for #16 AWG to #8 AWG stranded copper wire. The connector accommodates cable diameters from 0.350" to 1.150", operates at up to 250V AC, and supports three-phase power with three poles and four wires.


Key Features of the HUBBELL 20A Locking Connector:

  • Amperage/Voltage Rating: Rated for 20 A at 250V AC, suitable for industrial/commercial use

  • Body Material: Constructed from natural white nylon (omit qualitative claims)

  • Cord Range: Accepts cables with diameters between 0.350" and 1.150"

  • Contact Material: Brass contacts provide electrical connectivity

  • Wire Size Compatibility: Accommodates #16 AWG to #8 AWG stranded copper wire

  • Screw Terminals: Standard wiring style with funnel-shaped entry facilitates wire insertion

  • Temperature Rating: Operates continuously from -40°C (without impact) up to +75°C

  • Flame Resistance: Meets HB or better per UL94 or CSA standards

  • Ingress Protection: IP20 rating; intended for indoor dry locations unless otherwise protected

  • Additional Features: Integral dust shield covers internal wiring chamber; cord-mounted design; terminals identified per UL 498 requirements
