  6. Locking Connector, Non-NEMA, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Red

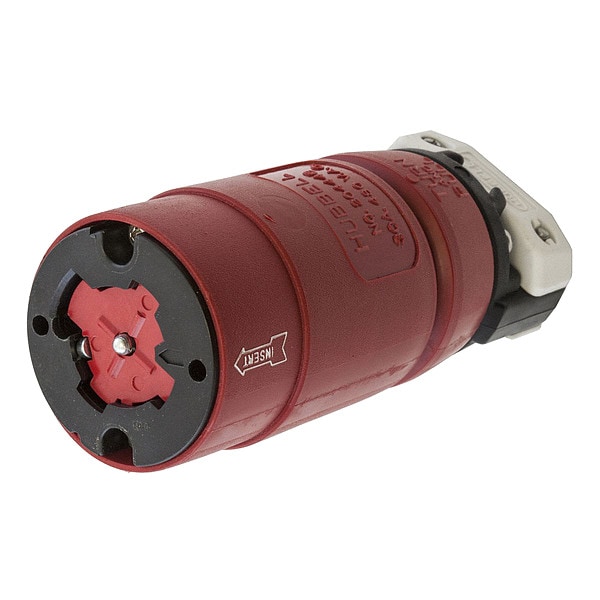

Hubbell Wiring Device-Kellems Locking Connector, Non-NEMA, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Red HBL20444B - main

Locking Connector, Non-NEMA, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Red

  • Mfr # HBL20444B

  • Zoro # G2097697

product price:  $282.15
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL20444B
Zoro #
G2097697
UPC #
783585017433
Country of Origin
United States

Dimensions

Cord Size
0.630 in to 1.200 in
Minimum Wire Size
10 AWG
For Maximum Cable Diameter
1.20 in
Overall Length
6 in
Maximum Wire Size
6 AWG
For Minimum Cable Diameter
0.70 in
Outside Diameter
2.438 in
Height
2.44 in
Dimensions
6 in x 2.44 in x 2.44 in
Width
2.44 in
Length
6 in
Wire Size
#10 AWG to #6 AWG

Details

Item
Locking Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Red
Cap Type
No Cap
Standards
CSA C22.2 No.42, UL 498
Resistance Properties
Dust, Impact Resistant, Moisture Resistant
Grade
Industrial/Commercial
IP Rating
IP30
Material
Nylon
Special Features
Terminals identified in accordance with UL 498
Body Material
Black Rynite
Maximum Operating Temperature
75 Degrees C
Contact Material
Bronze
Midget Locking
No
UL 94 Flammability Rating
HB
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
Power Indicating Light
No
Market
Industrial
Housing Material
Nylon
For Environment
Dry
Weight
1.05
Dielectric Strength
2,000V minimum
Flame Resistant
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Cord Mounted
Amperage Rating
30 A
Cord Range
0.70"-1.20" (17.78-30.5)
Application
Heavy Duty Industrial
Insulation
Insulated Body
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage Withstand - 2,000V minimum Environmental - Flammability - UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors Environmental - Moisture Resistance - IP30 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Antimicrobial
No
Power Indicator
No

Description

The HUBBELL 30A Locking Connector 3P 4W 480VAC RD is a locking connector rated for use in specified environments. It features a non-NEMA configuration, supports three poles and four wires, and is rated for up to 30 amps at 480V AC. The connector body is constructed from impact-resistant nylon with an insulated interior, intended for indoor dry locations as specified by manufacturer.


Key Features of the HUBBELL 30A Locking Connector:

  • Amperage/Voltage: Rated for 30 A and 480V AC

  • Poles/Wires: Three-pole, four-wire configuration

  • Cable Range: Accepts cables from 0.70" to 1.20" diameter; accommodates #10 AWG to #6 AWG stranded copper wire

  • Body Material: Impact-resistant black Rynite housing with thermoplastic interior

  • Contact Material: Bronze contacts integrated into the nose

  • Screw Terminals: Box terminals with pressure pads designed to maintain connection integrity

  • Strain Relief: Three-piece clamp assembly designed to help limit strain on cables and reduce exposure to moisture and dust

  • Spring-Loaded Safety Shutter: Present; plug ejection feature activates upon disengagement during connection/disconnection under load

  • Flame Resistance & Temperature Rating: UL94 HB flammability rating; operates between -40°C to +75°C (without impact)

  • Certain Standards Met: Certified to CSA C22.2 No.42 and listed to UL498 standards; IP30 rated for indoor use only
