Shop HUBBELL WIRING DEVICE-KELLEMS

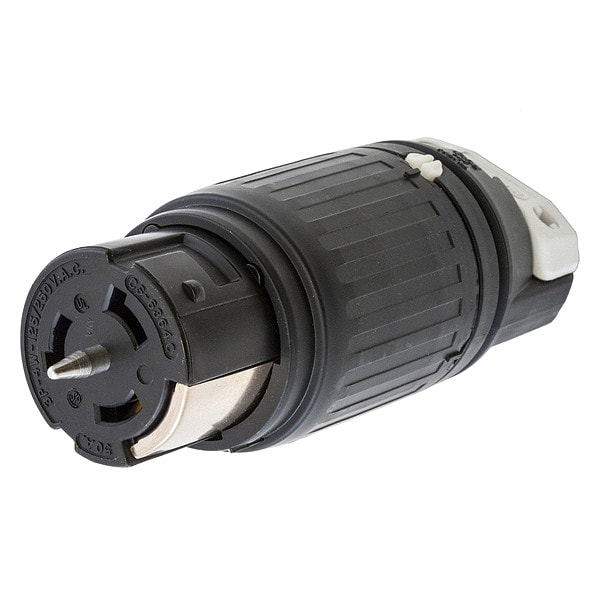

Locking Connector, Non-NEMA, 50 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # CS6364C

  • Zoro # G3030054

product price:  $167.40
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CS6364C
Zoro #
G3030054
UPC #
783585827971
Country of Origin
United States

Dimensions

Cord Size
0.750 in to 1.125 in
Outside Diameter
2.563 in
For Maximum Cable Diameter
1.25 in
Minimum Wire Size
10 AWG
Maximum Wire Size
6 AWG
Overall Length
6.5 in
For Minimum Cable Diameter
0.83 in
Dimensions
6.50 in x 2.56 in x 2.50 in
Wire Size
#10 AWG to #6 AWG
Height
2.50 in
Width
2.56 in
Length
6.50 in
Wire Rope Length
6.5 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA C22.2 No.42, UL 498
Resistance Properties
Heat Resistant
Material
Super Tough Nylon
IP Rating
IP20
Grade
Industrial/Commercial
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Body Material
Black Nylon
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
For Location
Indoor
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
Power Indicating Light
No
Housing Material
Nylon
Midget Locking
No
For Environment
Dry
UL 94 Flammability Rating
HB
Weight
1.05
Dielectric Strength
Withstands 2,000V minimum
Flame Resistant
HB or better
Application
Heavy Duty Industrial
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better Environmental - Operating Temperatures - Maximum continuous 75°C minimum to40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
50 A
Material - Mounting Hardware
Cord Mounted
Insulation
Insulated Body
Cord Range
.830"-1.250"(21.08-31.75)
Antimicrobial
No
Power Indicator
No
Power and Ground Indicating Light
No

Description

The HUBBELL 50A Twist-Lock Connector is a locking connector rated for use in industrial and commercial electrical applications. It features a twist-lock mechanism with 3 poles and 4 wires, rated for 50 amps at 125/250V AC. The connector is constructed with a nylon housing and thermoplastic polyester interior; see specifications for material properties. Suitable for use with stranded copper wire ranging from #10 AWG to #6 AWG, it accommodates cable diameters between 0.83" and 1.25".


Key Features of the HUBBELL - 50A Twist-Lock Connector:

  • Amperage/Voltage Rating: Rated for up to 50 A at 125/250V AC single phase.

  • Construction: Heavy-duty black nylon body with insulated housing; thermoplastic polyester interior enhances durability.

  • Cable & Cord Range: Accepts cables from .830" to 1.250" diameter; suitable for cord sizes from .750" to 1.125".

  • Wire Compatibility: Designed for #10 AWG to #6 AWG stranded copper wire only.

  • Connection Type: Screw terminals are used for conductor attachment; box terminal is designed to clamp conductors securely.

  • Strain Relief: Two-piece external cord clamp provides strain relief by gripping both conductors and jacket.

  • Operating Temperature Range: Rated operating temperature range: -40°C (without impact) to +75°C.

  • Standards Compliance: Certified to CSA C22.2 No.42; listed to UL 498 standards.

  • NEMA Configuration: Non-NEMA twist-lock design with grounded connection orientation (straight).
