  11. Locking Connector, Non-NEMA, 60 A, 600V AC, Three Phase, 3 Pole, Screw Terminals, Yellow

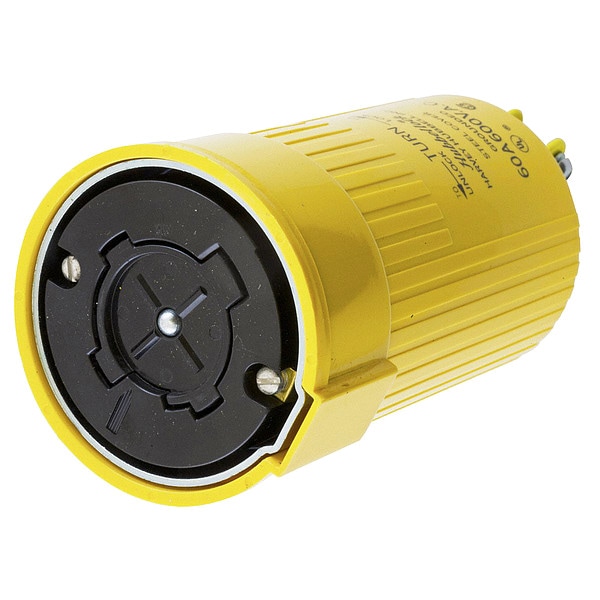

Hubbell Wiring Device-Kellems Locking Connector, Non-NEMA, 60 A, 600V AC, Three Phase, 3 Pole, Screw Terminals, Yellow HBL26418 - main

Locking Connector, Non-NEMA, 60 A, 600V AC, Three Phase, 3 Pole, Screw Terminals, Yellow

  • Mfr # HBL26418

  • Zoro # G2698647

product price: $616.95
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
60 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL26418
Zoro #
G2698647
UPC #
783585017310
Country of Origin
United States

Dimensions

Cord Size
0.875 in to 1.480 in
Overall Length
3.19 in
Outside Diameter
3.19 in
For Maximum Cable Diameter
1.45 in
For Minimum Cable Diameter
0.92 in
Minimum Wire Size
8 AWG
Maximum Wire Size
4 AWG
Length
3.19 in
Width
1.09 in
Height
5.44 in
Wire Size
#8 AWG to #4 AWG
Dimensions
3.19 in x 1.09 in x 5.44 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
60 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
No Cap
Standards
CSA Certified C22.2 No. 42, UL 498
Resistance Properties
Shatter and Crack Resistant
Grade
Industrial
IP Rating
IP30
Material
Steel Cover/Polycarbonate Cover
Body Material
Black Thermoset
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Application
Heavy Duty Industrial
Midget Locking
No
Power Indicating Light
No
UL 94 Flammability Rating
V-0
Market
Industrial
Housing Material
Thermoplastic
Contact Material
Copper
For Location
Indoor
Maximum Operating Temperature
75 Degrees C
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
Weight
2.45
Dielectric Strength
2,000V minimum
Flame Resistant
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Amperage Rating
60 A
Material - Mounting Hardware
Cord Mounted
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage Withstand - 2,000V minimum Environmental - Flammability - UL 94 VO Environmental - Moisture Resistance - IP30 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #8 AWG - #4 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Insulation
Insulated Body
Cord Range
0.920"-1.450" (23.36-36.83)
OEM Brand Name
Hubbell Wiring Device-Kellems
Antimicrobial
No
Power Indicator
No

Description

The HUBBELL 60A Locking Connector 3P 4W 600VAC YL is a Locking connector intended for use in industrial environments requiring secure electrical connections. It features a thermoplastic housing and insulated body; copper contacts are molded into the nose.


Key Features of the HUBBELL 60A Locking Connector:

  • Amperage/Voltage Rating: Rated for 60 amps and up to 600V AC, suitable for three-phase power applications.

  • Cable Range: Accepts cables with diameters from 0.92" to 1.45".

  • Wire Size Compatibility: Accommodates #8 AWG to #4 AWG stranded copper wire only.

  • Body Material: Constructed with black thermoset housing; interior components are thermoplastic.

  • Screw Terminals: Uses box terminals with stainless steel screws identified per UL 498 standards (X, Y, Z, White, Green).

  • The device includes a spring-loaded safety shutter that is intended to limit exposure to arcing during connection or disconnection under load. The device includes a spring-loaded safety shutter that is intended to limit exposure to arcing during connection or disconnection under load.

  • Flame Resistance & Temperature Ratings: Meets UL94 V-0 flammability rating; operates between -40°C (without impact) and +75°C continuous use.

  • IP30 Rated: Suitable for indoor dry locations unless additional protection is provided.

  • Standards Compliance: Certified to CSA C22.2 No.42 and listed to UL498 requirements.
