  11. Locking Plug, L14-30P, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black

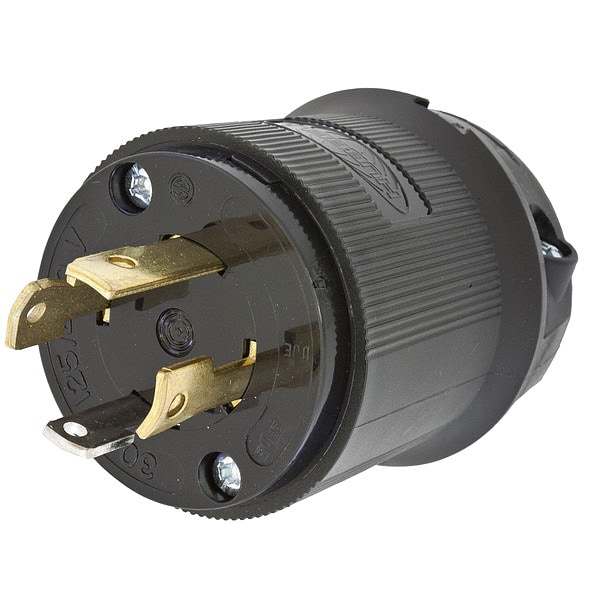

Hubbell Wiring Device-Kellems Locking Plug, L14-30P, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black HBL2711BK - main

Locking Plug, L14-30P, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black

  • Mfr # HBL2711BK

  • Zoro # G3167927

product price: $52.89
/ea

Key Features

NEMA Plug Configuration
L14-30P
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2711BK
Zoro #
G3167927
UPC #
783585172323
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Cord Size
0.350 in to 1.150 in
Maximum Wire Size
8 AWG
Body Length
2.75 in
Outside Diameter
2.33 in
Face Diameter
2.21 in
Minimum Wire Size
16 AWG
Length
2.75 in
Wire Size
#16 AWG to #8 AWG
Height
2.33 in
Width
2.33 in
Dimensions
2.75 in x 2.33 in x 2.33 in

Details

Item
Locking Plug
NEMA Plug Configuration
L14-30P
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
Boot Code
C
Grade
Industrial
Application
Extra Heavy Duty Industrial
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
For Environment
Dry
Polarized
Yes
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
For Location
Indoor
Blade Material
Brass
Horsepower Rating
2 hp
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Performance
Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Environmental - Moisture Resistance - IP20 Suitability
Dielectric Strength
Withstands 2,000V minimum
Cord Type
All Listed Portables
Amperage Rating
30 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
0.350"-1.150" (9-29)
Material - Mounting Hardware
Cord Mounted
Amps
30
NEMA Configuration
L14-30
Antimicrobial
No

Description

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, Housing Material Nylon, NEMA Plug Configuration L14-30P, Number of Blades 4, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 2.21 in, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.35 in, Grade Industrial, Grounding Grounded
