  11. Locking Plug, L14-30P, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White

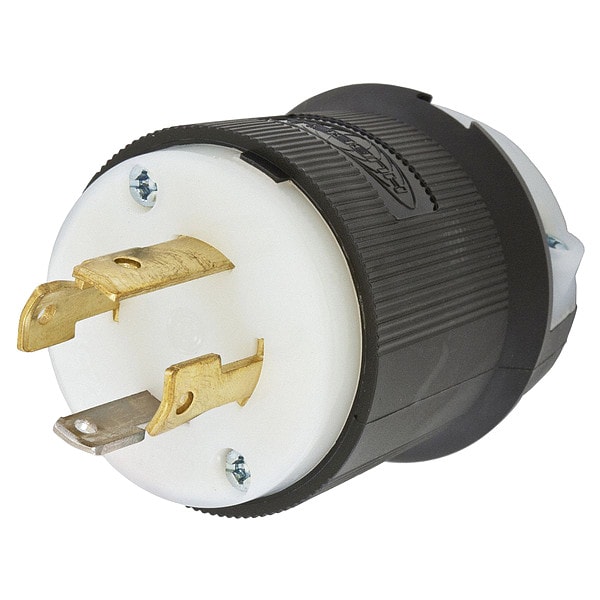

Hubbell Wiring Device-Kellems Locking Plug, L14-30P, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White HBL2711 - main

Locking Plug, L14-30P, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # HBL2711

  • Zoro # G3085862

product price: $51.17
/ea

Key Features

NEMA Plug Configuration
L14-30P
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2711
Zoro #
G3085862
UPC #
783585039145
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Cord Size
0.350 in to 1.150 in
Face Diameter
2.21 in
Maximum Wire Size
8 AWG
Body Length
2.33 in
Minimum Wire Size
16 AWG
Outside Diameter
2.33 in
Wire Size
#16 AWG to #8 AWG
Length
2.33 in
Width
2.33 in
Height
2.75 in
Dimensions
2.33 in x 2.33 in x 2.75 in

Details

Item
Locking Plug
NEMA Plug Configuration
L14-30P
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Boot Code
C
Grade
Industrial
Material
Nylon
Application
Extra Heavy Duty Industrial
Market
Industrial
Maximum Operating Temperature
75 Degrees C
For Environment
Dry
Minimum Operating Temperature
-40 Degrees C
For Location
Indoor
Housing Material
Nylon
Polarized
Yes
Horsepower Rating
2 hp
Blade Material
Brass
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Cord Type
All Listed Portables
Cord Range
0.350"-1.150" (9-29)
Amperage Rating
30 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Material - Mounting Hardware
Cord Mounted
Antimicrobial
No
Amps
30
NEMA Configuration
L14-30

Description

The HUBBELL 30A Twist-Lock Plug L14-30P is a locking plug intended for use in industrial settings, rated for 30 amps and 125/250V AC. It features a three-pole, four-wire configuration with screw terminal connections and accommodates cord sizes from 0.350 to 1.150 inches in diameter. The plug incorporates a cord grip design intended to reduce strain on terminations, as well as includes a dust shield designed to limit entry of contaminants into the wiring chamber.


Key Features of the HUBBELL - 30A Twist-Lock Plug L14-30P:

  • Amperage & Voltage: Rated for 30 A and suitable for use with 125/250V AC circuits

  • Cord Accommodation: Accepts all listed portable cords within a range of 0.350"–1.150" diameter (#16 AWG – #8 AWG stranded copper wire)

  • Wire Connection Type: Screw terminals with clear, funnel-shaped entry for ease of termination

  • Material & Construction: Nylon housing; brass blades; constructed with materials rated for resistance to certain chemicals and impacts

  • NEMA Configuration: L14-30P (3 pole, 4 wire), polarized and grounded

  • Operating Temperature Range: Maximum continuous temperature of 75°C; minimum -40°C without impact

  • Standards Compliance: Certified to CSA C22.2 No.42, UL Listed (UL498), Federal Specification W-C-596

  • Ingress Protection: IP20 rating—intended for indoor dry locations unless protected by additional means
