Shop HUBBELL WIRING DEVICE-KELLEMS

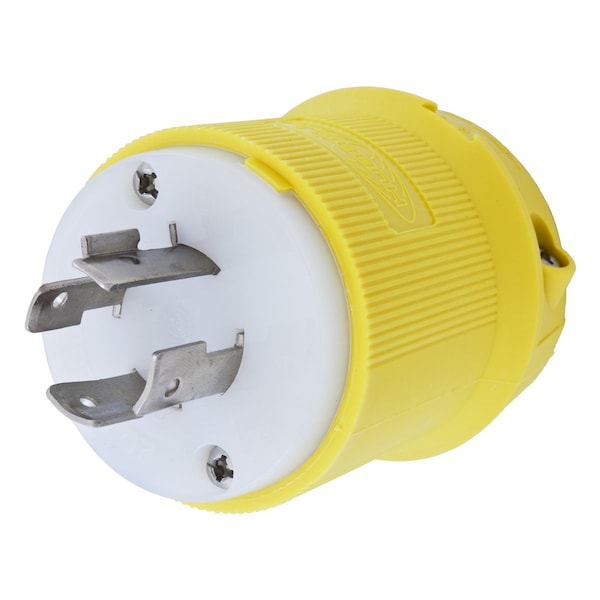

Locking Plug, L15-20P, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Yellow

  • Mfr # HBL24CM21

  • Zoro # G200702060

product price:
$
46.51
/ea

Key Features

NEMA Plug Configuration
L15-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL24CM21
Zoro #
G200702060
UPC #
783585038490
Country of Origin
United States

Dimensions

Cord Size
.35"-1.15"
Length
2.33 in
Wire Size
#16 AWG to #8 AWG
Width
2.33 in
Dimensions
2.33 in x 2.33 in x 2.75 in
Height
2.75 in
For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in

Details

Item
Locking Plug
NEMA Plug Configuration
L15-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Standards
Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
Resistance Properties
Corrosion Resistant
IP Rating
IP20
Material
Nylon
Application
Extra Heavy Duty Industrial
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Blade Material
Brass
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Cord Mounted
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating
20 A
Cord Range
0.350"-1.150" (9-29)
Cord Type
All Listed Portables
Dielectric Strength
Withstands 2,000V minimum

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Marine Grade,Male Plug, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20P,Screw Terminal, Yellow
