  11. Locking Plug, L18-20P, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

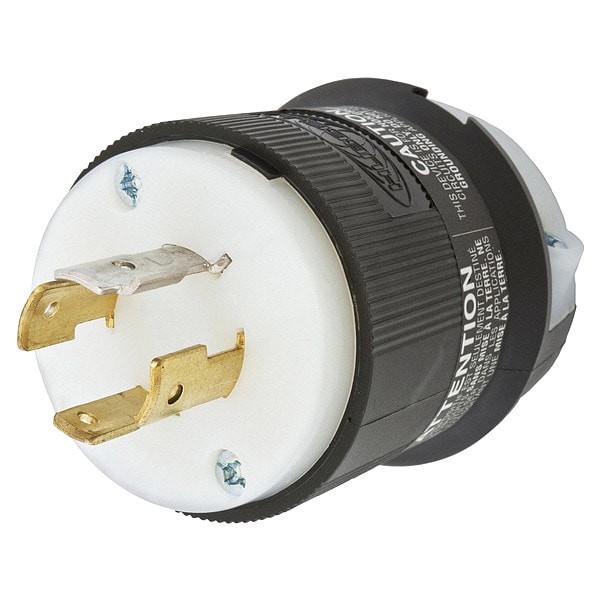

Hubbell Wiring Device-Kellems Locking Plug, L18-20P, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White HBL2441 - main

Locking Plug, L18-20P, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

  • Mfr # HBL2441

  • Zoro # G1303976

product price: $42.80
/ea

Key Features

Phase
Three
Number of Poles
4
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2441
Zoro #
G1303976
UPC #
783585038353
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Cord Size
0.350 in to 1.150 in
Body Length
2.33 in
Outside Diameter
2.33 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Face Diameter
2.21 in
Wire Size
#16 AWG to #8 AWG
Length
2.33 in
Width
2.33 in
Dimensions
2.33 in x 2.33 in x 2.75 in
Height
2.75 in

Details

Item
Locking Plug
NEMA Plug Configuration
L18-20P
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Boot Code
C
Material
Nylon
Grade
Industrial
Application
Extra Heavy Duty Industrial
Market
Industrial
Polarized
Yes
Blade Material
Brass
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
2 hp
For Location
Indoor
For Environment
Dry
Maximum Operating Temperature
75 Degrees C
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
20 A
Material - Mounting Hardware
Cord Mounted
Cord Range
0.350"-1.150" (9-29)
Cord Type
All Listed Portables
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Antimicrobial
No
Amps
20

Description

The HUBBELL 20A Twist-Lock Plug L18-20P is a locking plug rated for use in industrial applications where a locking connection is specified. It features a 4-pole, 4-wire configuration and is rated for 120/208V AC three-phase power at up to 20 amps. The plug features a cord grip intended to reduce strain on terminations, along with a clear, funnel-shaped wire entry for ease of wiring. An integral dust shield present helps prevent contaminants from entering the wiring chamber.


Key Features of the HUBBELL - 20A Twist-Lock Plug L18-20P:

  • Amperage/Voltage Rating: Rated for 20 A and 120/208V AC three-phase circuits

  • NEMA Configuration: L18-20P (locking type)

  • Cable Range: Accepts cable diameters from 0.350" to 1.150"

  • Wire Size Compatibility: Accommodates #16 AWG to #8 AWG stranded copper wire

  • Nylon housing provides chemical and impact resistance

  • Operating temperature range: -40°C to +75°C (without impact)

  • Dielectric Strength: Withstands minimum of 2,000V

  • Compatible with listed portable cords; suitable for cord-mounted installation

  • Screw Terminals: Standard screw terminal connections with polarized orientation

  • Standards Compliance: Certified to CSA C22.2 No.42, UL498, Federal Specification W-C-596
