  11. Locking Plug, L19-30P, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

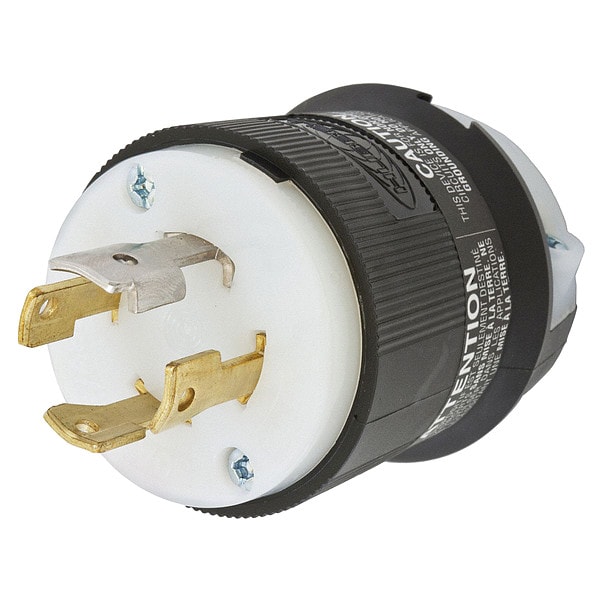

Hubbell Wiring Device-Kellems Locking Plug, L19-30P, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White HBL2761 - main

Locking Plug, L19-30P, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

  • Mfr # HBL2761

  • Zoro # G2446053

product price: $55.25
/ea

Key Features

Phase
Three
Number of Poles
4
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2761
Zoro #
G2446053
UPC #
783585039473
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Cord Size
0.350 in to 1.150 in
Face Diameter
2.21 in
Minimum Wire Size
16 AWG
Body Length
2.33 in
Maximum Wire Size
8 AWG
Outside Diameter
2.33 in
Length
2.33 in
Wire Size
#16 AWG to #8 AWG
Dimensions
2.33 in x 2.33 in x 2.75 in
Width
2.33 in
Height
2.75 in

Details

Item
Locking Plug
NEMA Plug Configuration
L19-30P
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
Grade
Industrial
Boot Code
C
Application
Extra Heavy Duty Industrial
Horsepower Rating
5 hp
Blade Material
Brass
Market
Industrial
For Location
Indoor
Polarized
Yes
Maximum Operating Temperature
75 Degrees C
Housing Material
Nylon
For Environment
Dry
Minimum Operating Temperature
-40 Degrees C
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Amperage Rating
30 A
Cord Type
All Listed Portables
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
0.350"-1.150" (9-29)
Dielectric Strength
Withstands 2,000V minimum
Antimicrobial
No
Amps
30

Description

The HUBBELL 30A Twist-Lock Plug L19-30P is a locking plug intended for use in industrial applications, rated for 30 amps and 277/480V AC in three-phase systems. It features a ribbed nylon housing with impact and chemical resistant properties, with a clear, funnel-shaped wire entry assists with wiring terminations. The integral dust shield includes an internal wiring chamber.


Key Features of the HUBBELL 30A Twist-Lock Plug L19-30P:

  • Amperage/Voltage: Rated for 30 A and 277/480V AC electrical connections.

  • Poles/Wires: Four-pole, four-wire configuration with screw terminal connections.

  • Cable Range: Accepts cord diameters from 0.350" to 1.150"; accommodates #16 AWG to #8 AWG stranded copper wire only.

  • Housing Material: Ribbed nylon construction offers impact and chemical resistance; black and white color scheme.

  • Cord Grip Design: Cord grip is designed to reduce strain on terminations during operation.

  • Environmental Suitability: For indoor dry locations; IP20 rated against solid objects larger than 12mm.

  • Operating Temperature Range: Maximum continuous temperature of 75°C; minimum -40°C (without impact).

  • NEMA Configuration: L19-30P twist-lock configuration; compatible with matching receptacles.

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, UL Listed to UL498 standards.
