  11. Locking Plug, L2-20P, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

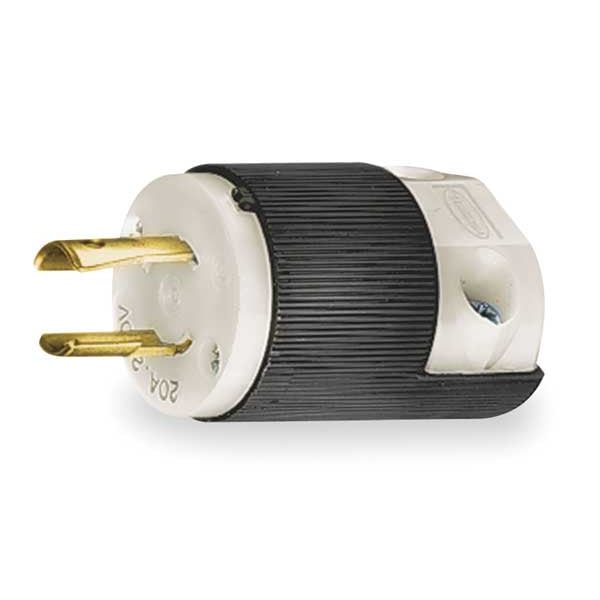

Hubbell Wiring Device-Kellems Locking Plug, L2-20P, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL7102C - main

Locking Plug, L2-20P, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL7102C

  • Zoro # G1669026

product price: $20.65
/ea

Key Features

NEMA Plug Configuration
L2-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7102C
Zoro #
G1669026
UPC #
783585177052
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.22 in
Cord Size
0.230 in to 0.720 in
Body Length
1.53 in
Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Outside Diameter
1.527 in
Length
1.53 in
Wire Size
#16 AWG to #8 AWG
Height
1.97 in
Dimensions
1.53 in x 1.53 in x 1.97 in
Width
1.53 in

Details

Item
Locking Plug
NEMA Plug Configuration
L2-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
2
Number of Blades
2
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 43, Federal Specification W-C-597, UL 499
Resistance Properties
Chemical Resistant, Impact Resistant
Boot Code
A
Material
Nylon
Grade
Industrial
Application
Extra Heavy Duty Industrial
Horsepower Rating
2 hp
For Environment
Dry
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
Polarized
Yes
For Location
Indoor
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
Blade Material
Brass
Flammability
HB or better per UL94/CSA 22.2 No.0.17
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating
20 A
Cord Type
All Listed Portables
Cord Range
0.230"-0.720"(5.6-18.3)
Material - Mounting Hardware
Cord Mounted
Amps
20
NEMA Configuration
L2-20
Antimicrobial
No

Description

The HUBBELL 20A Twist-Lock Plug L2-20P is suitable for use in industrial settings where locking plugs are required. This 2-pole, 2-wire plug is rated for 20 amps and 250V AC, featuring a twist-lock mechanism intended to reduce the likelihood of unintentional disconnection. The unit includes an integral dust shield covering the wiring chamber to protect it from contaminants and includes self-threading screws for assembly. Its internal wiring chambers are separated, providing insulation between conductors and facilitating inspection.


Key Features of the HUBBELL - 20A Twist-Lock Plug L2-20P:

  • Amperage/Voltage: Rated for 20 A at 250V AC

  • NEMA Configuration: L2-20P (twist-lock)

  • Poles/Wires: 2 poles, 2 wires; non-grounded

  • Cable Range: Accepts cable diameters from 0.220 in to 0.720 in (#16 AWG to #8 AWG wire size)

  • Housing Material: Nylon body with brass blades; rated as resistant to certain chemicals and impacts per manufacturer specifications

  • Operating Temperature Range: -40°C minimum (without impact) up to +75°C maximum continuous use

  • Flammability Rating: HB or better per UL94/CSA standards

  • Screw Terminals: Standard screw terminal wire connection type

  • Standards Compliance: Certified CSA C22.2 No.43, Federal Specification W-C-597, UL Listed (UL499)

  • Ingress Protection: IP20 – suitable for indoor dry locations unless protected by additional means
