  11. Locking Plug, L21-30P, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Yellow
This item is Discontinued.

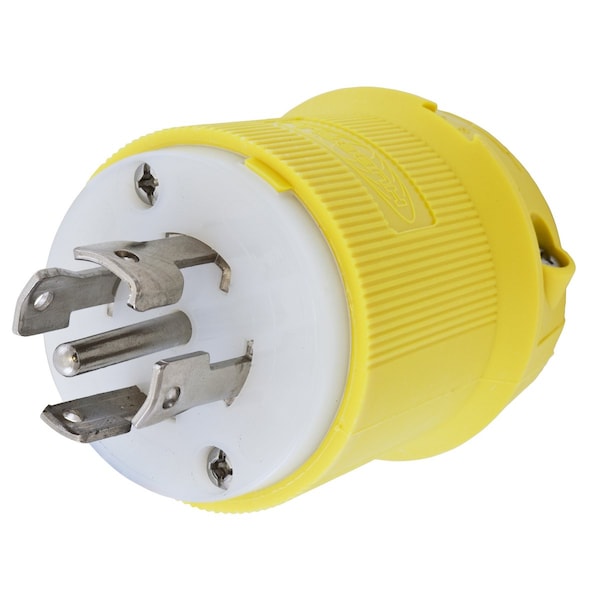

Hubbell Wiring Device-Kellems Locking Plug, L21-30P, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Yellow HBL28CM11

Locking Plug, L21-30P, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Yellow (Discontinued)

  • Mfr # HBL28CM11
  • Zoro # G400701269
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL28CM11
Zoro #
G400701269
UPC #
783585039770
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Cord Size
.35"-1.15"
Wire Size
#16 AWG to #8 AWG
Length
2.33 in
Width
2.33 in
Height
2.75 in
Dimensions
2.33 in x 2.33 in x 2.75 in
Display Size
Standard Sized

Details

Item
Locking Plug
NEMA Plug Configuration
L21-30P
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP20
Standards
Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
Resistance Properties
Corrosion Resistant
Application
Heavy Duty Industrial/Marine
Material
Nylon
Operating Temp.
Maximum Continuous 75 C Minimum -40 C (w/o impact)
Temp. Rise
Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Blade Material
Brass
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Cord Type
All Listed Portables
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Cord Range
0.350"-1.150" (9-29)
Performance
Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #16 - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
Listings
UL 498 Fed.Spec. W-C-596 CSA C22.2 No.42
Material - Mounting Hardware
Cord Mounted
Nema Rating
L21-30P
Environmental Conditions
Corrosion Resistant
Horsepower - Maximum
3
Amperage Rating
30 A
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Current / Amperage Rating
30 A
Industry Standard(s)
Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Marine Grade,Male Plug, 30A 3-Phase 120/208V AC, 4-Pole 5-Wire Grounding, L21-30P,Screw Terminal, Yellow
