  11. Locking Plug, L22-30P, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

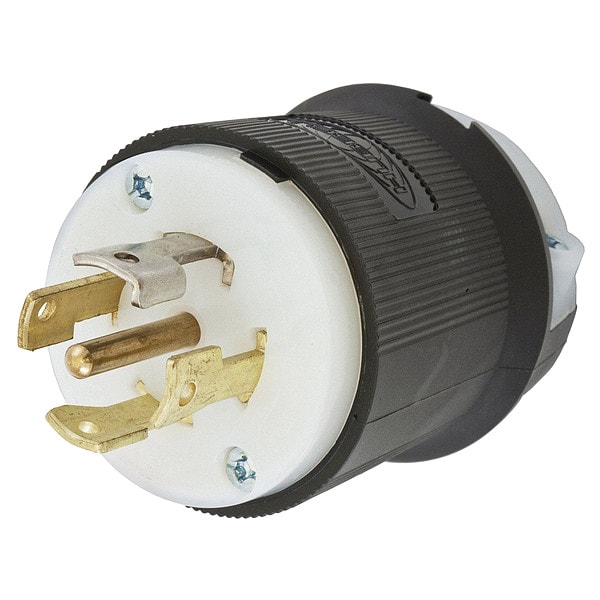

Hubbell Wiring Device-Kellems Locking Plug, L22-30P, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White HBL2821 - main

Locking Plug, L22-30P, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

  • Mfr # HBL2821

  • Zoro # G2835287

product price: $58.32
/ea

Key Features

NEMA Plug Configuration
L22-30P
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2821
Zoro #
G2835287
UPC #
783585039695
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Cord Size
0.350 in to 1.150 in
Maximum Wire Size
8 AWG
Outside Diameter
2.33 in
Body Length
2.33 in
Face Diameter
2.21 in
Minimum Wire Size
16 AWG
Length
2.33 in
Wire Size
#16 AWG to #8 AWG
Width
2.33 in
Dimensions
2.33 in x 2.33 in x 2.75 in
Height
2.75 in

Details

Item
Locking Plug
NEMA Plug Configuration
L22-30P
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Boot Code
C
Material
Nylon
Grade
Industrial
Application
Extra Heavy Duty Industrial
Polarized
Yes
Market
Industrial
For Environment
Dry
Horsepower Rating
10 hp
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees C
Blade Material
Brass
For Location
Indoor
Maximum Operating Temperature
75 Degrees C
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Amperage Rating
30 A
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Type
All Listed Portables
Dielectric Strength
Withstands 2,000V minimum
Cord Range
0.350"-1.150" (9-29)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Antimicrobial
No
Amps
30

Description

• Ribbed nylon housing provides a secure grip and impact and chemical resistance.
• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.
