  11. Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

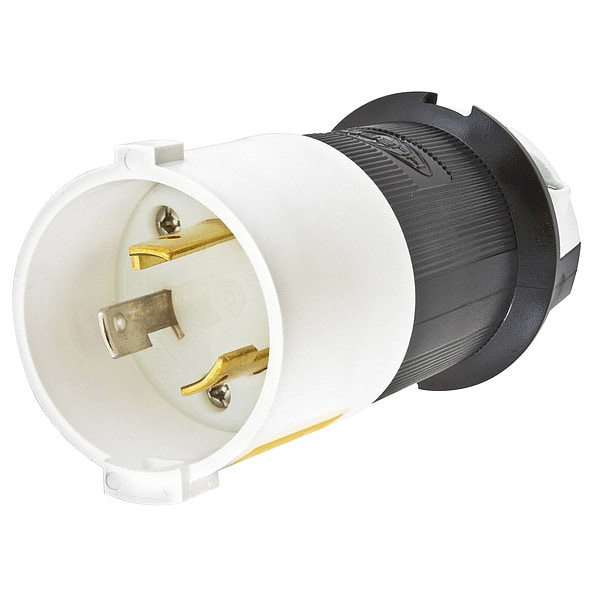

Hubbell Wiring Device-Kellems Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL2611S - main

Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL2611S

  • Zoro # G0543374

product price: $43.47
/ea

Key Features

NEMA Plug Configuration
L5-30P
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2611S
Zoro #
G0543374
UPC #
783585234304
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.93 in
For Minimum Cable Diameter
0.36 in
Cord Size
0.360 in to 0.930 in
Face Diameter
2.04 in
Maximum Wire Size
8 AWG
Body Length
2.26 in
Minimum Wire Size
16 AWG
Outside Diameter
2.26 in
Length
2.26 in

Details

Item
Locking Plug
NEMA Plug Configuration
L5-30P
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant, Watertight
Material
Nylon
Grade
Industrial
For Location
Indoor
Polarized
Yes
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
2 hp
Housing Material
Nylon
Blade Material
Brass
Maximum Operating Temperature
75 Degrees C
For Environment
Dry
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Antimicrobial
No
Amps
30

Description

The HUBBELL 30A Locking Plug L5-30P is an industrial-grade locking plug intended for use in electrical connections in indoor, dry locations. It features a ribbed nylon housing for enhanced grip and resistance to impact and chemicals, along with a cord grip design intended to reduce strain on wire terminations. The integral dust shield provides additional protection by keeping contaminants out of the wiring chamber.


Key Features of the HUBBELL 30A Locking Plug L5-30P:

  • NEMA Configuration: L5-30P, rated for 125V AC single-phase applications at up to 30 amps

  • Wire Accommodation: Accepts wire sizes from 16 AWG to 8 AWG using screw terminals

  • Cord Size Compatibility: Suitable for cable diameters between 0.36 in and 0.93 in

  • Material Construction: Nylon housing with brass blades; constructed with materials rated for chemical and impact resistance

  • Temperature Range: Rated for operation within a temperature range of -40°C to +75°C (when not subject to impact)

  • Flammability Rating: Meets UL 94 HB or better standards

  • Shrouded Design & Polarization: Features a polarized blade arrangement

  • Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL 498
