  11. Locking Plug, L6-15P, 15 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

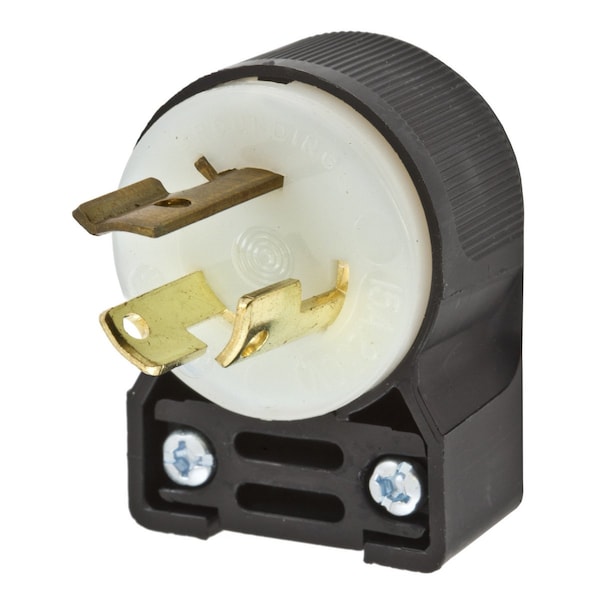

Hubbell Wiring Device-Kellems Locking Plug, L6-15P, 15 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL4570CA - main

Locking Plug, L6-15P, 15 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL4570CA

  • Zoro # G700701099

product price: $24.30
/ea

Key Features

NEMA Plug Configuration
L6-15P
Current Rating
15 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL4570CA
Zoro #
G700701099
UPC #
783585170053
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.325 in
Cord Size
.325"-.655"
Length
2.08 in
Wire Size
#16 AWG to #8 AWG
Width
1.52 in
Height
1.21 in
Dimensions
2.08 in x 1.52 in x 1.21 in

Details

Item
Locking Plug
NEMA Plug Configuration
L6-15P
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Application
Extra Heavy Duty Industrial
Material
Nylon
Flammability
HB or better per UL94 or CSA 22.2 No. 0.6
Blade Material
Brass
Amperage Rating
15 A
Cord Range
0.325"-0.655"(8.3-16.6)
Cord Type
All Listed Portables
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Male Plug, 15A 250V, 2-Pole 3-Wire Grounding, L6-15P, Screw Terminal,Black and White, Angled
