  11. Locking Plug, L6-20P, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black

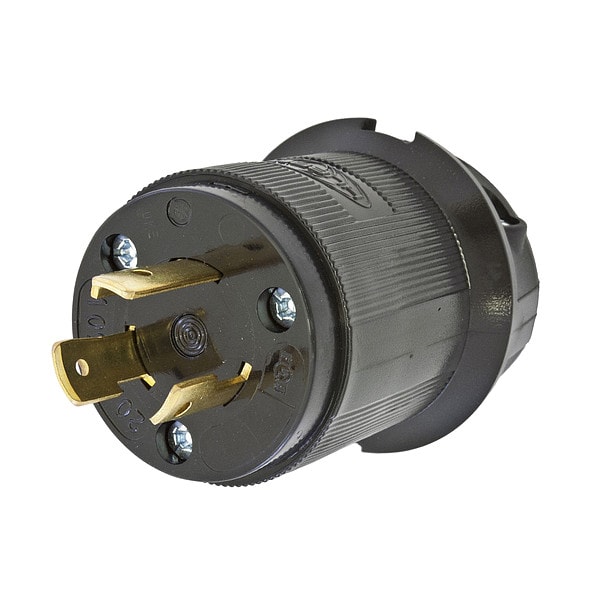

Hubbell Wiring Device-Kellems Locking Plug, L6-20P, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL2321BK - main

Locking Plug, L6-20P, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL2321BK

  • Zoro # G0959673

product price: $24.98
/ea

Key Features

NEMA Plug Configuration
L6-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2321BK
Zoro #
G0959673
UPC #
783585172224
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.93 in
For Minimum Cable Diameter
0.36 in
Cord Size
0.360 in to 0.930 in
Minimum Wire Size
16 AWG
Body Length
2.26 in
Maximum Wire Size
8 AWG
Outside Diameter
2.26 in
Face Diameter
1.97 in
Length
2.26 in
Wire Size
#16 AWG to #8 AWG
Dimensions
2.26 in x 2.26 in x 2.75 in
Width
2.26 in
Height
2.75 in

Details

Item
Locking Plug
NEMA Plug Configuration
L6-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Boot Code
B
Material
Nylon
Application
Extra Heavy Duty Industrial
For Location
Indoor
Blade Material
Brass
Polarized
Yes
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
2 hp
Market
Industrial
For Environment
Dry
Housing Material
Nylon
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Cord Type
All Listed Portables
Cord Range
0.360"-0.930" (9-24)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Cord Mounted
Amperage Rating
20 A
Dielectric Strength
Withstands 2,000V minimum
Amps
20
Antimicrobial
No
NEMA Configuration
L6-20

Description

The HUBBELL 20A Locking Plug L6-20P is suitable for use in extra heavy duty applications. It features a black ribbed nylon housing that provides impact and chemical resistance, with a cord grip design intended to reduce strain on terminations. The clear, funnel-shaped wire entry facilitates wiring termination, while an integral dust shield feature helps prevent contaminants from entering the wiring chamber.


Key Features of the HUBBELL 20A Locking Plug L6-20P:

  • Amperage/Voltage Rating: Rated for 20 A and 250V AC single-phase operation

  • NEMA Configuration: L6-20P (2-pole, 3-wire grounding)

  • Housing Material: Ribbed nylon housing provides impact and chemical resistance

  • Cord Range: Accepts cords from 0.360" to 0.930" diameter (#16 AWG to #8 AWG stranded copper wire)

  • Cord Grip Design: Designed to reduce strain on terminations

  • Wire Connection Type: Screw terminals with clear funnel-shaped entry for ease of wiring

  • Dust Shield: Integral feature included helps prevent contaminants from entering the wiring chamber

  • Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use

  • Flammability Rating: HB or better per UL94 or CSA standards

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596; Listed to UL498
