Shop HUBBELL WIRING DEVICE-KELLEMS

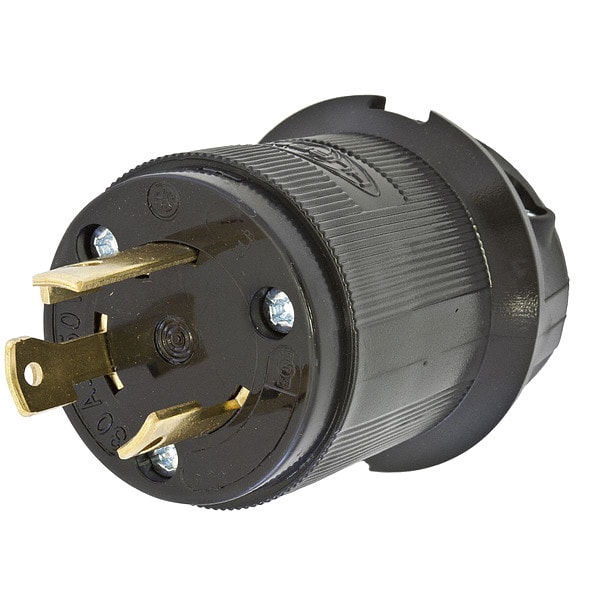

Locking Plug, L6-30P, 30 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL2621BK

  • Zoro # G0766053

product price:  $40.95
/ea

Key Features

NEMA Plug Configuration
L6-30P
Current Rating
30 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2621BK
Zoro #
G0766053
UPC #
783585172248
Country of Origin
United States

Dimensions

Cord Size
0.360 in to 0.930 in
Outside Diameter
2.26 in
For Maximum Cable Diameter
0.93 in
Body Length
2.75 in
For Minimum Cable Diameter
0.36 in
Minimum Wire Size
16 AWG
Face Diameter
1.97 in
Maximum Wire Size
8 AWG
Length
2.75 in

Details

Item
Locking Plug
NEMA Plug Configuration
L6-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Boot Code
B
Material
Nylon
IP Rating
IP20
Grade
Industrial
Blade Material
Brass
Housing Material
Nylon
Horsepower Rating
2 hp
Polarized
Yes
For Environment
Dry
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
75 Degrees C
For Location
Indoor
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Amps
30
Antimicrobial
No
NEMA Configuration
L6-30

Description

• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants
