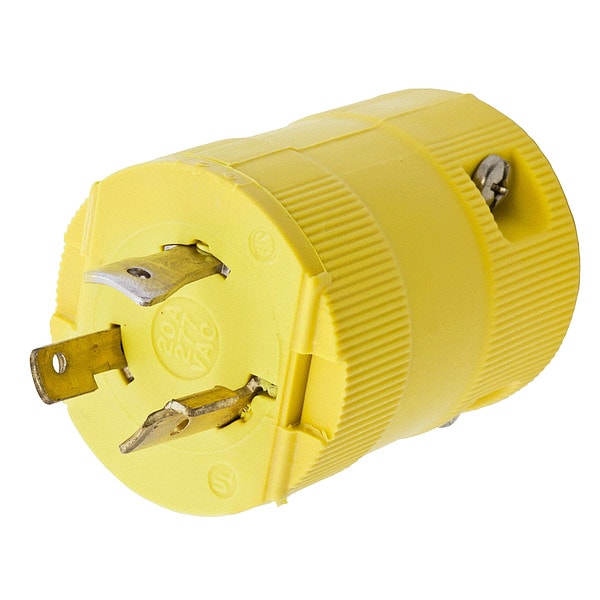

Locking Plug, L7-20P, 20 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

  • Mfr # HBL2331VY
  • Zoro # G9539293
product price:
$
16.55
/ea

Key Features

NEMA Plug Configuration
L7-20P
Current Rating
20 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2331VY
Zoro #
G9539293
UPC #
783585235684
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.325 in
Cord Size
0.360 in to 0.930 in
Body Length
1.78 in
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Face Diameter
1.781 in
Length
1.78 in
Wire Size
#18 AWG to #10 AWG
Height
2.50 in
Width
1.78 in
Dimensions
1.78 in x 1.78 in x 2.50 in
Wire Rope Length
1.78 in
Overall Length
1.78 in

Details

Item
Locking Plug
NEMA Plug Configuration
L7-20P
Current Rating
20 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
IP Rating
IP20
Grade
Industrial
Material
Nylon
Application
Extra Heavy Duty Industrial
Polarized
Yes
Horsepower Rating
2 hp
Housing Material
Nylon
For Location
Indoor
Blade Material
Brass
Maximum Operating Temperature
75 Degrees C
For Environment
Dry
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Cord Range
0.325"-0.720"(8.26-18.3)
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Cord Type
All Listed Portables
Performance
Electrical - Current Interrupting - Certified for full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Environmental - Terminal Identification - Terminals identified in accordance with UL 498 Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only.
Material - Mounting Hardware
Cord Mounted
Antimicrobial
No
Amps
20
UL 94 Flammability Rating
HB

Description

• Powerful cord grip prevents conductor slippage and strain on wiring terminals
• Totally insulated impact and crush resistant nylon body
• Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
