  11. Locking Plug, L9-20P, 20 A, 600V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

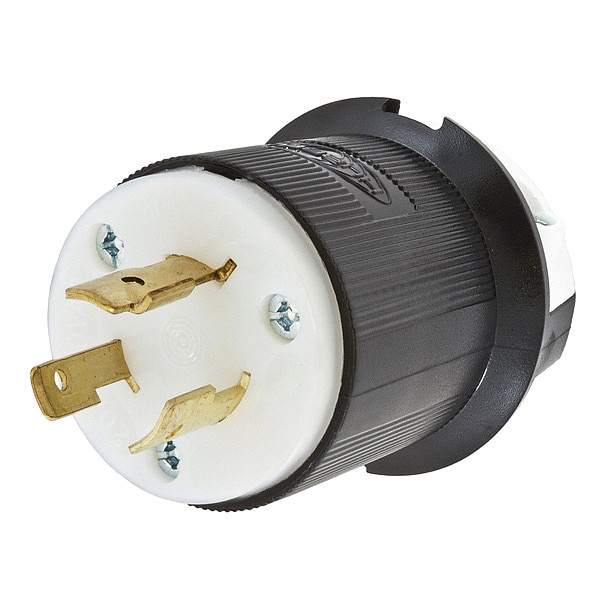

Hubbell Wiring Device-Kellems Locking Plug, L9-20P, 20 A, 600V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL2351 - main

Locking Plug, L9-20P, 20 A, 600V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL2351

  • Zoro # G1016653

product price: $27.29
/ea

Key Features

NEMA Plug Configuration
L9-20P
Current Rating
20 A
Voltage Rating
600V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2351
Zoro #
G1016653
UPC #
783585038025
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.93 in
For Minimum Cable Diameter
0.36 in
Cord Size
0.360 in to 0.930 in
Body Length
2.26 in
Minimum Wire Size
16 AWG
Outside Diameter
2.26 in
Face Diameter
1.97 in
Maximum Wire Size
8 AWG
Length
2.26 in
Wire Size
#16 AWG to #8 AWG
Width
2.26 in
Height
2.75 in
Dimensions
2.26 in x 2.26 in x 2.75 in

Details

Item
Locking Plug
NEMA Plug Configuration
L9-20P
Current Rating
20 A
Voltage Rating
600V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Material
Nylon
Boot Code
B
Application
Extra Heavy Duty Industrial
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
5 hp
Polarized
Yes
For Environment
Dry
Blade Material
Brass
For Location
Indoor
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Housing Material
Nylon
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Material - Mounting Hardware
Cord Mounted
Dielectric Strength
Withstands 2,000V minimum
Amperage Rating
20 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
0.360"-0.930" (9-24)
Cord Type
All Listed Portables
Amps
20
Antimicrobial
No

Description

Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L9-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 600V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.97 in, For Maximum Cable Diameter 0.93 in, For Minimum Cable Diameter 0.36 in, Grade Industrial, Grounding Grounded
