  11. Locking Plug, Non-NEMA, 15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White

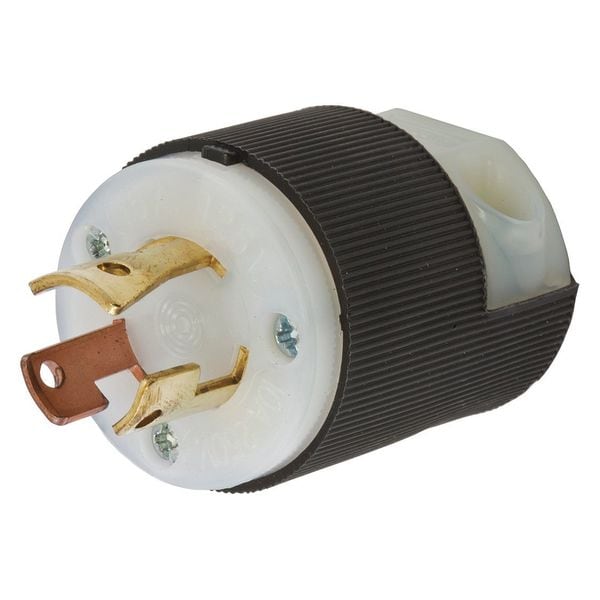

Hubbell Wiring Device-Kellems Locking Plug, Non-NEMA, 15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White HBL7567C - main

Locking Plug, Non-NEMA, 15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # HBL7567C

  • Zoro # G1317617

product price: $28.29
/ea

Key Features

NEMA Plug Configuration
Non-NEMA
Current Rating
15 A
Phase
Single
Number of Poles
3
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7567C
Zoro #
G1317617
UPC #
783585178752
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Cord Size
0.230 in to 0.720 in
Maximum Wire Size
10 AWG
Body Length
1.53 in
Minimum Wire Size
18 AWG
Outside Diameter
1.527 in
Wire Size
#18 AWG to #10 AWG
Length
1.53 in
Height
1.97 in
Width
1.53 in
Dimensions
1.53 in x 1.53 in x 1.97 in

Details

Item
Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
Grade
Industrial
Application
Extra Heavy Duty Industrial
For Location
Indoor
Market
Industrial
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
For Environment
Dry
Housing Material
Nylon
Polarized
Yes
Blade Material
Brass
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Amperage Rating
10A
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
0.230"-0.720"(5.8-18.3)
Cord Type
All Listed Portables
Material - Mounting Hardware
Cord Mounted
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
NEMA Configuration
Non-NEMA, 3 Blade
Antimicrobial
No
Amps
15/10

Description

• Individually molded face for each blade configuration keeps debris out of plug interior
• Ribbed nylon housing is impact and chemical resistant
• Roomy wiring chamber provides ample space for wiring
