  11. Locking Plug, Non-NEMA, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White

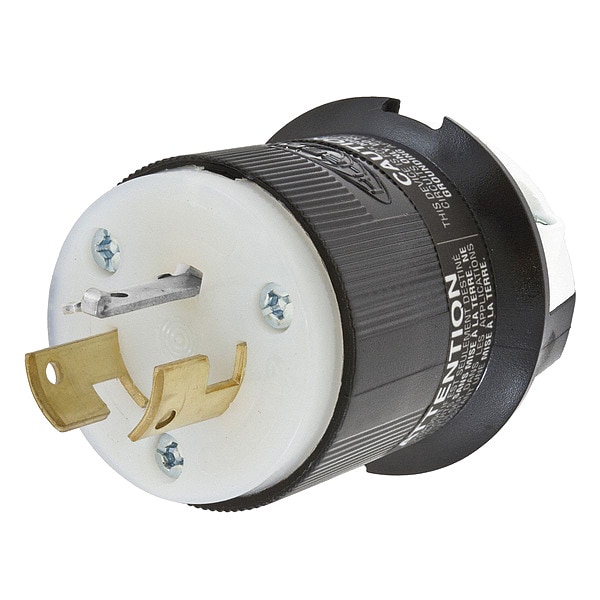

Hubbell Wiring Device-Kellems Locking Plug, Non-NEMA, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White HBL9965C - main

Locking Plug, Non-NEMA, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # HBL9965C

  • Zoro # G3242671

product price: $30.99
/ea

Key Features

NEMA Plug Configuration
Non-NEMA
Phase
Single
Number of Poles
3
Number of Wires
3
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL9965C
Zoro #
G3242671
UPC #
783585037608
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.93 in
For Minimum Cable Diameter
0.36 in
Cord Size
0.360 in to 0.930 in
Minimum Wire Size
16 AWG
Body Length
2.26 in
Maximum Wire Size
8 AWG
Face Diameter
2.21 in
Outside Diameter
2.26 in
Length
2.26 in
Wire Size
#16 AWG to #8 AWG
Width
2.26 in
Dimensions
2.26 in x 2.26 in x 2.75 in
Height
2.75 in

Details

Item
Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
Material
Nylon
Application
Extra Heavy Duty Industrial
Blade Material
Brass
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Housing Material
Nylon
For Location
Indoor
For Environment
Dry
Polarized
Yes
Minimum Operating Temperature
-40 Degrees C
Flammability
HB or better per UL94/CSA 22.2 No.0.17
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Cord Mounted
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Dielectric Strength
Withstands 2,000V minimum
Cord Type
All Listed Portables
Cord Range
0.360"-0.930" (9-24)
Amperage Rating
20 A
NEMA Configuration
Non-NEMA, 3 Blade
Amps
20
Antimicrobial
No

Description

The HUBBELL 20A Locking Plug is a three-pole, three-wire device rated for 125/250V AC, suitable for use in industrial environments requiring robust performance. It features a ribbed nylon housing rated for impact and chemical resistance, along with a cord grip designed to reduce strain on wire terminations. The plug includes a clear, funnel-shaped wire entry intended to facilitate wiring termination and an integral dust shield intended to limit the ingress of contaminants into the wiring chamber.


Key Features of the HUBBELL 20A Locking Plug:

  • Amperage & Voltage: Rated for 20 A at 125/250V AC single phase operation.

  • Construction: Nylon housing offers durability against impacts and chemicals; brass blades provide reliable electrical connections.

  • Cord Accommodation: Accepts cable diameters from 0.36 in to 0.93 in; suitable for all listed portable cords (#16 AWG to #8 AWG stranded copper wire).

  • Wire Connection: Screw terminals with standard wiring style and straight connection orientation.

  • Performance Ratings: Withstands dielectric voltage up to 2,000V minimum; certified current interrupting at full rated current; flammability rating HB or better per UL94/CSA standards.

  • Operating Temperature Range: Maximum continuous temperature of 75°C and minimum -40°C (without impact).

  • Ingress Protection: IP20 rating—intended for indoor dry locations unless additional protection is provided.

  • Certifications & Standards: Listed to UL 498, CSA C22.2 No.42, Federal Specification W-C-596.
