  11. Locking Plug, Non-NEMA, 30 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

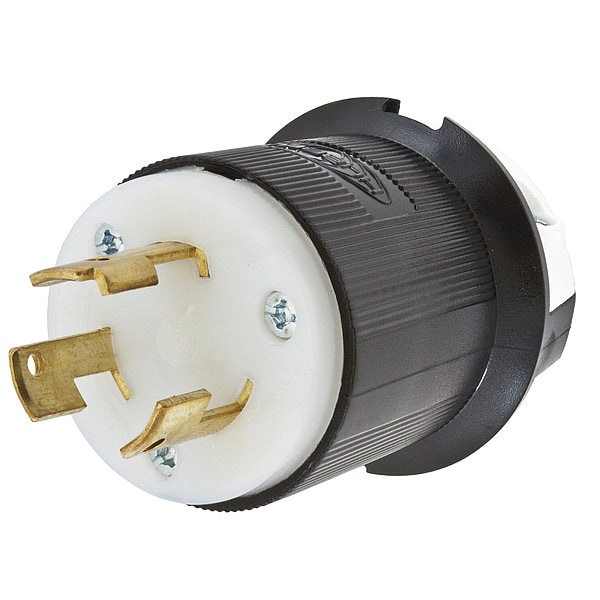

Hubbell Wiring Device-Kellems Locking Plug, Non-NEMA, 30 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL3331GC - main

Locking Plug, Non-NEMA, 30 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL3331GC

  • Zoro # G2020085

product price: $47.99
/ea

Key Features

NEMA Plug Configuration
Non-NEMA
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL3331GC
Zoro #
G2020085
UPC #
783585039824
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.93 in
For Minimum Cable Diameter
0.36 in
Cord Size
0.360 in to 0.930 in
Body Length
2.26 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Outside Diameter
2.26 in
Wire Size
#16 AWG to #8 AWG
Length
2.26 in
Width
2.26 in
Dimensions
2.26 in x 2.26 in x 2.76 in
Height
2.76 in

Details

Item
Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
Grade
Industrial
Boot Code
B
Application
Extra Heavy Duty Industrial
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
Market
Industrial
For Environment
Dry
Polarized
Yes
Housing Material
Nylon
Blade Material
Brass
For Location
Indoor
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
0.360"-0.930" (9-24)
Amperage Rating
30 A
Cord Type
All Listed Portables
Material - Mounting Hardware
Cord Mounted
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
NEMA Configuration
Non-NEMA, 3 Blade
Antimicrobial
No
Amps
30

Description

The HUBBELL 30A Locking Plug is an industrial electrical connector rated for use in specified applications and environments. This locking plug features a ribbed nylon housing; see specifications for material properties, as well as a cord grip design intended to reduce strain on wire terminations. The clear, funnel-shaped wire entry facilitates wiring process, while an integral dust shield over the wiring chamber helps keep contaminants out.


Key Features of the HUBBELL 30A Locking Plug:

  • Amperage/Voltage Rating: Rated for 30 A and 250V AC single-phase applications

  • Poles/Wires: 2-pole, 3-wire configuration with screw terminal connections

  • Cable Range: Accepts cable diameters from 0.360" to 0.930"; accommodates #16 AWG to #8 AWG stranded copper wire

  • Housing Material: Nylon construction provides chemical and impact resistance; ribbed exterior enhances grip

  • Cord Grip Design: Protects against excess strain on terminations during use

  • Wire Entry & Dust Shield: Funnel-shaped entry aids termination; integrated dust shield over the wiring chamber helps keep contaminants out

  • Operating Temperature Range: Suitable for continuous operation from -40°C (without impact) up to +75°C

  • Flammability & Dielectric Strength: Meets HB or better per UL94; withstands dielectric voltages up to 2,000V minimum

  • NEMA Configuration/IP Rating: Non-NEMA plug type with IP20 suitability (indoor dry locations unless otherwise protected)

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and listed to UL498 standards
