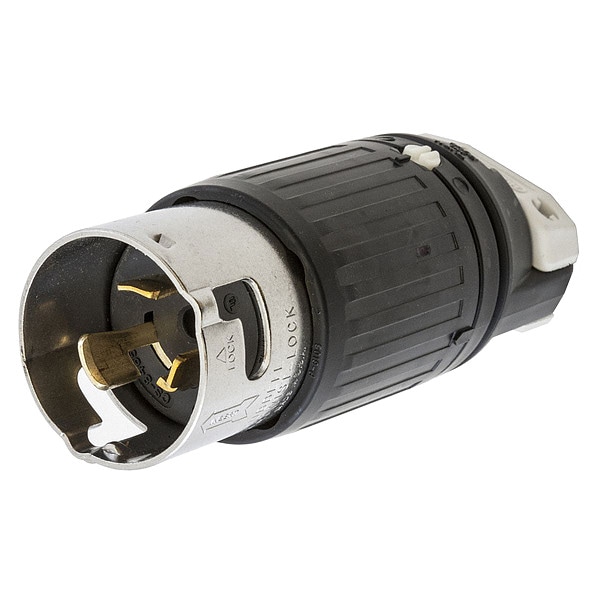

Locking Plug, Non-NEMA, 50 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, Black, White
Mfr # CS8465C
Zoro # G2190867
product price: $123.46
/ea
Free Shipping & Returns
Key Features
NEMA Plug Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CS8465C
Zoro #
G2190867
UPC #
783585829166
Country of Origin
United States
Dimensions
For Maximum Cable Diameter
1.25 in
For Minimum Cable Diameter
0.83 in
Cord Size
0.750 in to 1.125 in
Maximum Wire Size
6 AWG
Outside Diameter
2.563 in
Body Length
6.37 in
Minimum Wire Size
10 AWG
Length
6.37 in
Wire Size
#10 AWG to #6 AWG
Height
2.56 in
Dimensions
6.37 in x 2.56 in x 2.56 in
Width
2.56 in
Description
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
• Super tough nylon housing offers better impact qualities
• Stainless steel shroud protects contacts and prevents mismating
• Heavy duty two-piece external cord clamp provides maximum strain relief
• Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
• Thermoplastic polyester interior provides heat resistance and impact strength
• Super tough nylon housing offers better impact qualities
• Stainless steel shroud protects contacts and prevents mismating
• Heavy duty two-piece external cord clamp provides maximum strain relief
• Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
• Thermoplastic polyester interior provides heat resistance and impact strength
