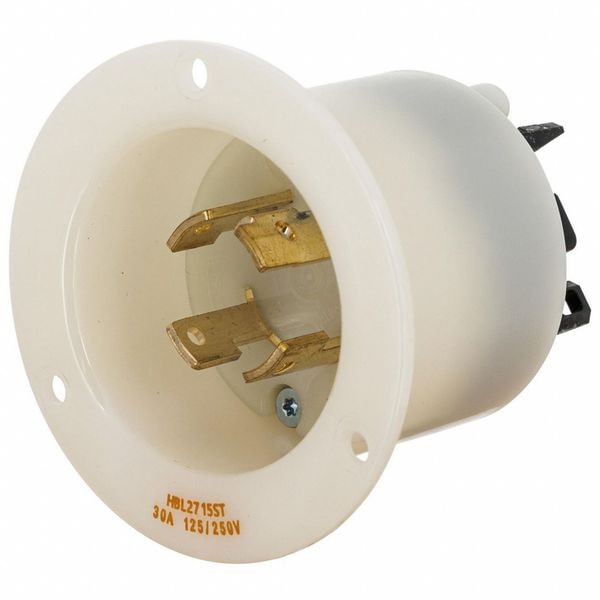

Locking Receptacle, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Spring Clamp Terminals

The HUBBELL Locking Receptacle is a flanged electrical receptacle intended for indoor use. It features spring clamp terminals allow tool-free wire termination, and its funnel-shaped wire entry facilitates backwired installation. This locking receptacle accommodates 14 AWG to 6 AWG copper wires and is compatible with NEMA L14-30R configuration with grounding requirements.

Key Features of the HUBBELL Locking Receptacle:

• Current/Voltage Rating: Rated for 30 A at 125/250V AC


• NEMA Configuration: Plug - L14-30P; Receptacle - L14-30R


• Wire Connection Type: Spring clamp terminals enable tool-free terminations


• Wire Size Compatibility: Accepts copper wires from 14 AWG to 6 AWG


• Number of Poles/Wires/Blades: 3 poles, 4 wires, and 4 blades


• Horsepower Rating: Rated for circuits up to 2 hp


• Housing Material & Finish: Nylon housing with natural finish; UL94 HB flammability rating


• Operating Temperature Range: -40°C to +75°C maximum operating temperature


• Certain Dimensions: Face diameter – 2.23 in; Flange diameter – 2.686 in; Overall depth – 2.56 in; Face plate width – .09 in


• IP Rating: IP20 (protection against solid objects over 12mm)


• Standards Compliance: CSA C22.2 No.42, Federal Specification W-C-596, UL498 certified
