  6. Locking Receptacle, L1-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

This item is Discontinued.

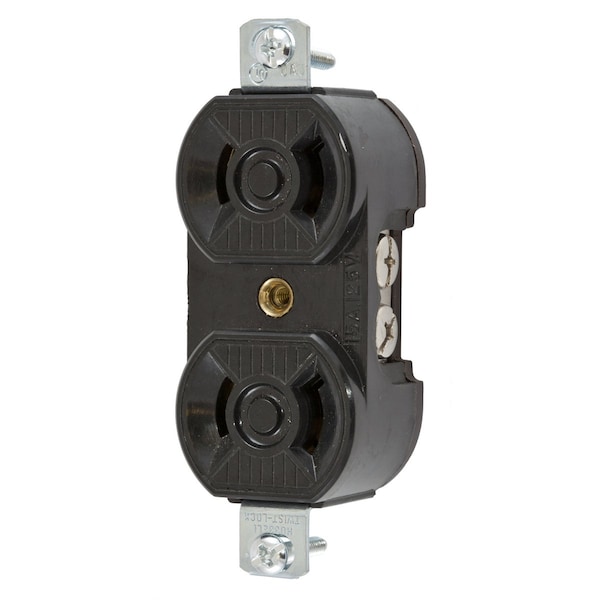

Hubbell Wiring Device-Kellems Locking Receptacle, L1-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals HBL7540

Locking Receptacle, L1-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals (Discontinued)

  • Mfr # HBL7540
  • Zoro # G800701180
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL7540
Zoro #
G800701180
UPC #
783585237602
Country of Origin
United States

Dimensions

Wire Size
#18 AWG - #10 AWG solid or stranded copper wire only.
Height
1.19 in
Length
3.28 in
Width
1.32 in
Dimensions
3.28 in x 1.32 in x 1.19 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L1-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
2
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
Certified for current interrupting at full rated current, UL
Resistance Properties
Corrosion Resistant, Heat Resistant
Special Features
Molded In or Stamped On
Wiring Style
Standard
Material
Steel-zinc-plated
Application
Heavy Duty Industrial
Lock Type
Twist-lock
Base Material
Black Thermoset
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Terminal Designations
Terminals identified in accordance with UL 498
Spring Material
.031" Brass
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Duplex Receptacle, 15A 125V, 2-Pole 2-Wire Non Grounding, L1-15R, ScrewTerminal, Black
