  11. Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals

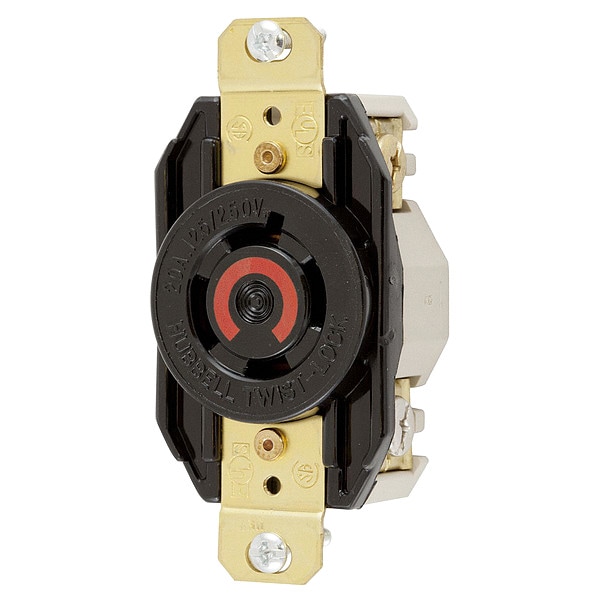

Hubbell Wiring Device-Kellems Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals HBL2410 - main

Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL2410

  • Zoro # G1177723

product price: $44.28
/ea

Key Features

NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2410
Zoro #
G1177723
UPC #
783585235738
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#14 to #8 AWG Copper Only
Height
1.23 in
Width
1.7 in
Length
3.28 in
Dimensions
3.28 in x 1.7 in x 1.23 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
1
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Moisture Resistant
Flange Type
Non-Flanged
Material
Thermoplastic Elastomer
Special Features
Corrosion resistant
Wiring Style
Standard
Mounting Type
Flush Mount
Grade
Industrial
Horsepower Rating
2 hp
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Market
Industrial
Includes
Mounting Hardware
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Contact Material
Brass
Housing Material
Nylon
Number of Gangs
1
For Location
Indoor
For Environment
Dry
AFCI
No
Maximum Operating Temperature
167 Degrees F
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Lock Type
Twist-lock
Base Material
Nylon Polyester
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Spring Material
.040" Brass
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Dielectric Strength
Withstands 2,000V minimum
Amperage Rating
20 A
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Heavy Duty Industrial
Amps
20

Description

The HUBBELL 20A Twist-Lock Receptacle (L14-20R) is an industrial locking receptacle that is intended for use in indoor dry locations. It features a twist-lock mechanism that helps reduce the likelihood of accidental disconnection and accommodates 3 poles and 4 wires, rated for 125/250V AC at 20 amps. The device supports both back and side wiring with wire restraint recesses, while face color coding aids in matching devices by voltage.


Key Features of the HUBBELL - 20A Twist-Lock Receptacle L14-20R:

  • Amperage/Voltage: Rated for 20 A, 125/250V AC single-phase operation

  • NEMA Configuration: L14-20R, polarized and grounded design

  • Wiring: Accepts #16 AWG to #8 AWG solid or stranded copper wire; screw terminals identified per UL 498

  • Mounting Type: Flush mount with included mounting hardware; standard size product

  • Material Construction: Nylon polyester base, thermoplastic elastomer housing, all-brass mounting and grounding system

  • Operating Temperature Range: Maximum continuous 75°C (167°F), minimum -40°C without impact

  • Dielectric Strength & Flammability: Withstands minimum of 2,000V; flammability rating V-2 per UL94/CSA standards

  • IP Rating/NEMA Enclosure: IP20 suitability; NEMA Type 1 enclosure rating—intended for indoor use only unless further protected

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, listed to UL 498
