  11. Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals

This item is Discontinued.

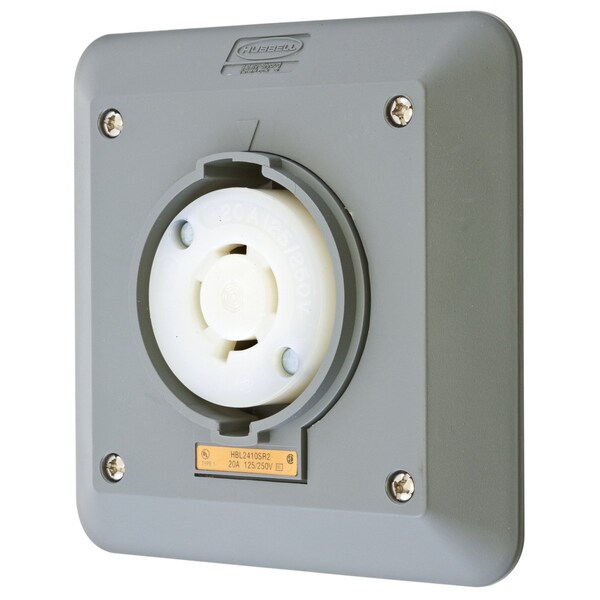

Hubbell Wiring Device-Kellems Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals HBL2410SR2

Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals (Discontinued)

  • Mfr # HBL2410SR2
  • Zoro # G800701692
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2410SR2
Zoro #
G800701692
UPC #
783585234441
Country of Origin
United States

Dimensions

Wire Size
#16 AWG - #8 AWG solid or stranded copper wire only.
Dimensions
5.12 in x 5.12 in x 2.22 in
Display Size
Standard Sized Product
Width
5.12 in
Length
5.12 in
Height
2.22 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
Standards
Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498
Resistance Properties
Moisture Resistant
Flange Type
Flanged
Wiring Style
Shrouded
Material
zinc plated
Special Features
Molded In or Stamped On
Flange Material
Gray Valox 357U
Application
Heavy Duty Industrial Shrouded
Spring Material
.031" Brass
Operating Temp.
Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact)
Lock Type
Twist-lock
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Temp. Rise
Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Designations
Terminals identified in accordance with UL 498
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
Number of Gang(s)
1-Gang
Horsepower - Maximum
2 (1)
Industry Standard(s)
Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, SafetyShroud, 2-Gang Surface Mount Receptacle, 20A 125/250V, 3-Pole 4-WireGrounding, L14-20R, Screw Terminal, Gray
