  11. Locking Receptacle, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Surface Mount, Screw Terminals

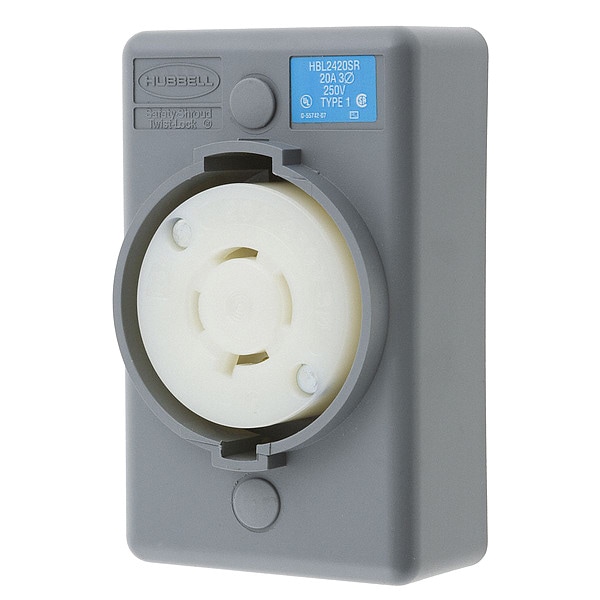

Hubbell Wiring Device-Kellems Locking Receptacle, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Surface Mount, Screw Terminals HBL2420SR - main

Locking Receptacle, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Surface Mount, Screw Terminals

  • Mfr # HBL2420SR

  • Zoro # G0441856

product price: $52.85
/ea

Key Features

NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2420SR
Zoro #
G0441856
UPC #
783585234502
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#12AWG

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Gray
Mount Type
Surface
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Flange Type
Non-Flanged
Material
Impact Modified PBT
Wiring Style
Standard
Grade
Industrial
Special Features
Corrosion resistant
Mounting Type
Surface Mount
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Number of Gangs
1
Horsepower Rating
3 hp
For Location
Indoor
Housing Material
Valox
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
AFCI
No
Contact Material
Brass
Polarized
Yes
For Environment
Dry
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Flange Material
Gray Valox 357U
Spring Material
.031" Brass
Terminal Designations
Terminals identified in accordance with UL 498
Lock Type
Twist-lock
Amps
20

Description

• Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
• Catalog number and color coded voltage rating are visible even when in use
• Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
