Shop HUBBELL WIRING DEVICE-KELLEMS

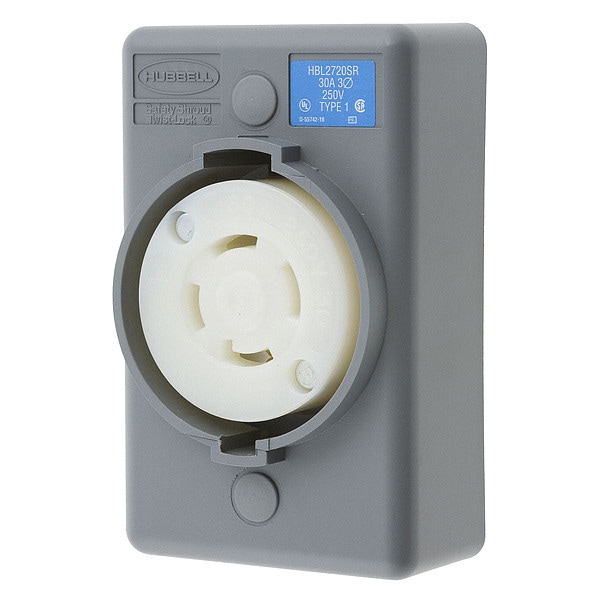

Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Surface Mount, Screw Terminals

  • Mfr # HBL2720SR

  • Zoro # G0821834

product price:
$
83.45
/ea

Key Features

NEMA Receptacle Configuration
L15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL2720SR
Zoro #
G0821834
UPC #
783585234748
Country of Origin
United States
Item
Locking Receptacle
NEMA Receptacle Configuration
L15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Surface
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Special Features
Corrosion resistant
IP Rating
IP20
Mounting Type
Surface Mount
Material
Impact Modified PBT
Wiring Style
Standard
Grade
Industrial
AFCI
No
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Housing Material
Valox
Contact Material
Brass
Polarized
Yes
Shrouded
Yes
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
Horsepower Rating
3 hp
Number of Gangs
1
For Environment
Dry
NEMA Enclosure Rating
12, 4X
Market
Industrial
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Spring Material
.031" Brass
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Lock Type
Twist-lock
Amps
30
UL 94 Flammability Rating
V-2

Description

• Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
• Catalog number and color coded voltage rating are visible even when in use
• Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
