  11. Locking Receptacle, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Flush Mount, White

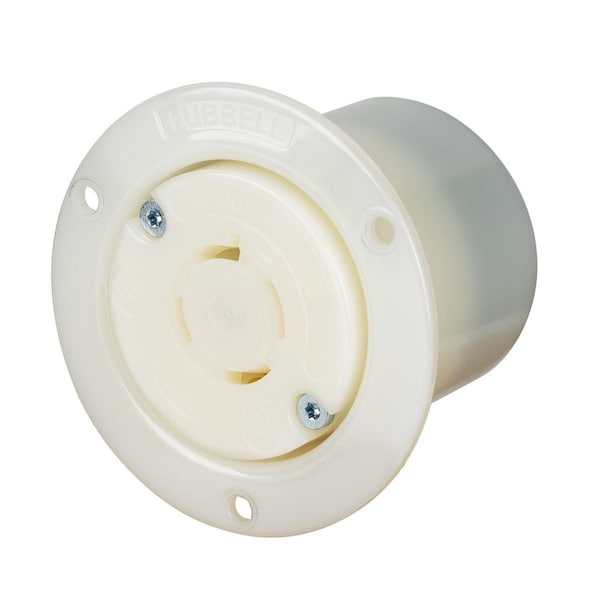

Hubbell Wiring Device-Kellems Locking Receptacle, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Flush Mount, White HBL2436ST - main

Locking Receptacle, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Flush Mount, White

  • Mfr # HBL2436ST

  • Zoro # G006171329

product price: $57.49
/ea

Key Features

NEMA Receptacle Configuration
L16-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2436ST
Zoro #
G006171329
UPC #
783585719146
Country of Origin
China

Dimensions

Flange Diameter
2.23 in
Face Plate Height
2.77 in
Maximum Wire Size
8 AWG
Face Diameter
3.08 in
Overall Depth
2.27 in
Mount Hole Center-to-Center Height
3.28 in
Minimum Wire Size
16 AWG
Face Plate Width
1.7 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L16-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Spring Clamp Terminals
Shrouded
No
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
1
Standards
CSA C22.2, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
Flange Type
Flanged
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
Market
Industrial
Includes Mounting Hardware
Yes
AFCI
No
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon
Number of Gangs
1
Horsepower Rating
5 hp
Includes
Mounting Hardware
Polarized
Yes
For Environment
Dry
For Location
Indoor

Description

The HUBBELL Locking Receptacle is a straight, three-phase locking receptacle rated for use in dry, indoor locations per manufacturer specifications. It features the EdgeConnectTM screwless termination system that enables wire connection via insertion and plunger actuation. The receptacle supports backwired terminations with funnel-shaped wire entry that facilitates installation and accommodates wire sizes from 8 AWG to 16 AWG.


Key Features of the HUBBELL Locking Receptacle:

  • NEMA Configuration: L16-20R; rated for 20 A and 480V AC

  • Number of Poles/Wires: 3 poles, 4 wires; grounded

  • Horsepower Rating: Rated for applications up to 5 hp

  • Operating Temperature Range: -40°F to 167°F

  • Housing Material: Nylon housing construction

  • Contact Material: Brass contacts

  • Mounting Hardware Included; single-gang design (1 gang)

  • UL 94 Flammability Rating: HB; IP20 ingress protection rating

  • NEMA Enclosure Type: Type 1 (for indoor use only)

  • Certain standards met including CSA C22.2, Federal Specification W-C-596, UL 498
