  6. Locking Receptacle, L18-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals

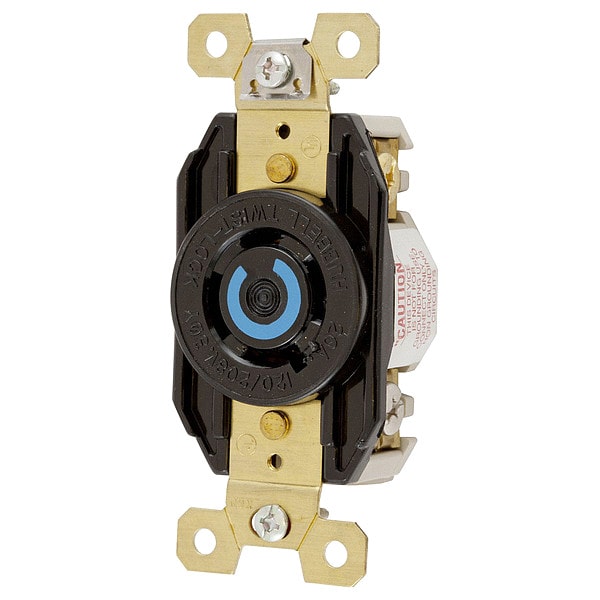

Hubbell Wiring Device-Kellems Locking Receptacle, L18-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals HBL2440 - main

Locking Receptacle, L18-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL2440

  • Zoro # G1601923

product price:  $49.89
/ea

Key Features

NEMA Receptacle Configuration
L18-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL2440
Zoro #
G1601923
UPC #
783585235790
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#12 AWG
Height
1.23 in
Width
1.7 in
Dimensions
3.28 in x 1.7 in x 1.23 in
Length
3.28 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L18-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
NEMA Enclosure Rating
1
Resistance Properties
Corrosion Resistant, Moisture Resistant
Grade
Industrial
Special Features
Corrosion resistant
Mounting Type
Flush Mount
IP Rating
IP30
Wiring Style
Standard
Material
Thermoset
Polarized
Yes
For Location
Indoor
Market
Industrial
Includes Mounting Hardware
Yes
Number of Gangs
1
AFCI
No
For Environment
Dry
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Includes
Mounting Screws
Horsepower Rating
2 hp
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Lock Type
Twist-lock
Spring Material
.040" Brass
Base Material
Nylon Polyester
Terminal Designations
Terminals identified in accordance with UL 498
Amperage Rating
20 A
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
Application
Heavy Duty Industrial
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amps
20

Description

• Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
• Face color coding by voltage facilitates locating and mating of proper devices
• All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
