Shop HUBBELL WIRING DEVICE-KELLEMS

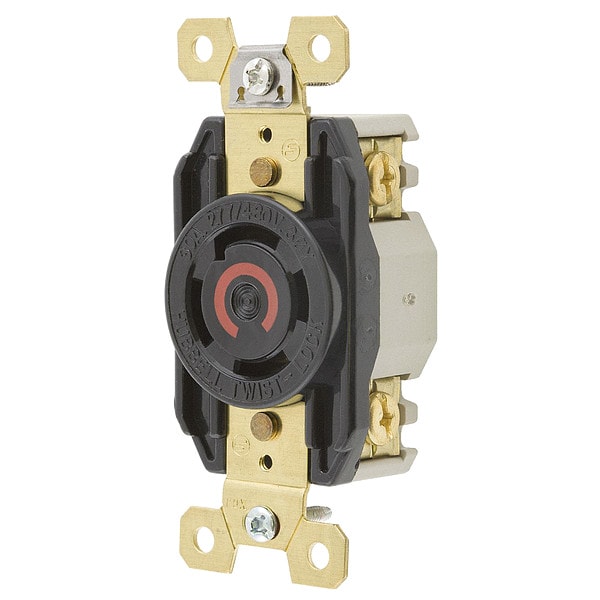

Locking Receptacle, L19-30R, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL2760

  • Zoro # G2415515

product price:
$
71.42
/ea

Key Features

NEMA Receptacle Configuration
L19-30R
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL2760
Zoro #
G2415515
UPC #
783585236216
Country of Origin
United States
Item
Locking Receptacle
NEMA Receptacle Configuration
L19-30R
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant
Special Features
Corrosion resistant
Material
Nylon
IP Rating
IP20
Mounting Type
Flush Mount
Wiring Style
Standard
Grade
Industrial
Housing Material
Thermoplastic
Horsepower Rating
5 hp
Shrouded
No
Polarized
Yes
Connection Orientation
Straight
AFCI
No
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
Number of Gangs
1
Contact Material
Brass
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
Includes
Mounting Screws
Market
Industrial
NEMA Enclosure Rating
1
For Environment
Dry
Terminal Designations
Terminals identified in accordance with UL 498
Spring Material
.040" Brass
Base Material
Nylon Polyester
Lock Type
Twist-lock
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Amps
30
UL 94 Flammability Rating
V-2

Description

• High-impact, abuse-resistant nylon face
• Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
• Face color coding by voltage facilitates locating and mating of proper devices
• All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
