  11. Locking Receptacle, L2-20R, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

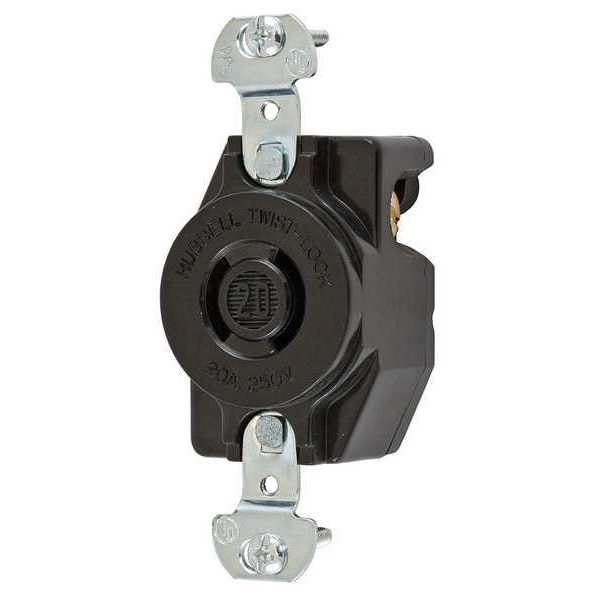

Hubbell Wiring Device-Kellems Locking Receptacle, L2-20R, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals HBL7210B - main

Locking Receptacle, L2-20R, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL7210B

  • Zoro # G1047304

product price: $24.19
/ea

Key Features

NEMA Receptacle Configuration
L2-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7210B
Zoro #
G1047304
UPC #
783585237107
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
15A #14 AWG

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L2-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
2
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
Federal Specification W-C-596
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Material
Phenolic
Grade
Industrial
Wiring Style
Standard
Mounting Type
Flush Mount
Special Features
Corrosion resistant
Housing Material
Thermoplastic
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
Number of Gangs
1
Market
Industrial
Includes Mounting Hardware
Yes
Horsepower Rating
2 hp
Includes
Mounting Hardware
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
For Environment
Dry
AFCI
No
For Location
Indoor
Contact Material
Brass
Lock Type
Twist-lock
Spring Material
.031" Brass
Base Material
Black Thermoset
Terminal Designations
Terminals identified in accordance with UL 498
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Amps
20

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Type Non-Flanged, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration L2-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 2, Phase Single, Polarized Yes, Shrouded No, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass, Cover Type No Cover
