  11. Locking Receptacle, L21-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals

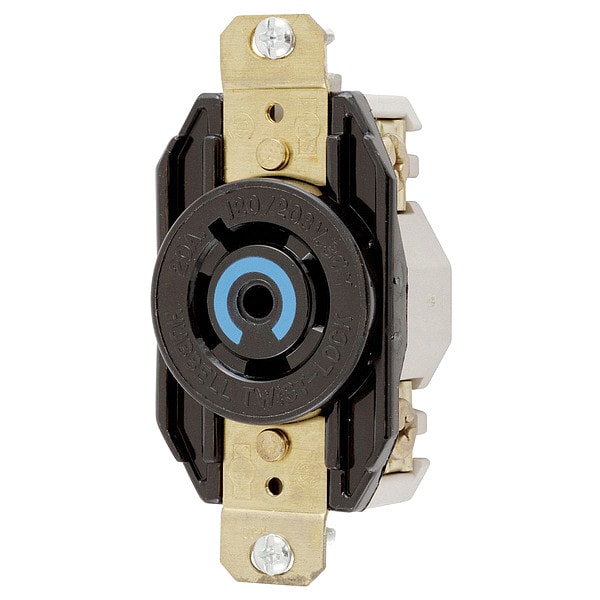

Hubbell Wiring Device-Kellems Locking Receptacle, L21-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals HBL2510 - main

Locking Receptacle, L21-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL2510

  • Zoro # G3173362

product price: $53.66
/ea

Key Features

NEMA Receptacle Configuration
L21-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2510
Zoro #
G3173362
UPC #
783585235851
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#14 to #8 AWG Copper Only
Width
1.70 in
Length
3.28 in
Dimensions
3.28 in x 1.70 in x 1.23 in
Height
1.23 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L21-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
1
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Moisture Resistant
Flange Type
Non-Flanged
Mounting Type
Flush Mount
Material
Phenolic
Special Features
Corrosion resistant
Grade
Industrial
Wiring Style
Standard
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Polarized
Yes
Horsepower Rating
2 hp
For Environment
Dry
AFCI
No
Number of Gangs
1
Market
Industrial
Contact Material
Brass
Includes
Mounting Hardware
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Spring Material
.040" Brass
Base Material
Nylon Polyester
Lock Type
Twist-lock
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Application
Heavy Duty Industrial
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Amperage Rating
20 A
Material - Mounting Hardware
Screw Mounting
Amps
20

Description

• Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
• Face color coding by voltage facilitates locating and mating of proper devices
• All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
