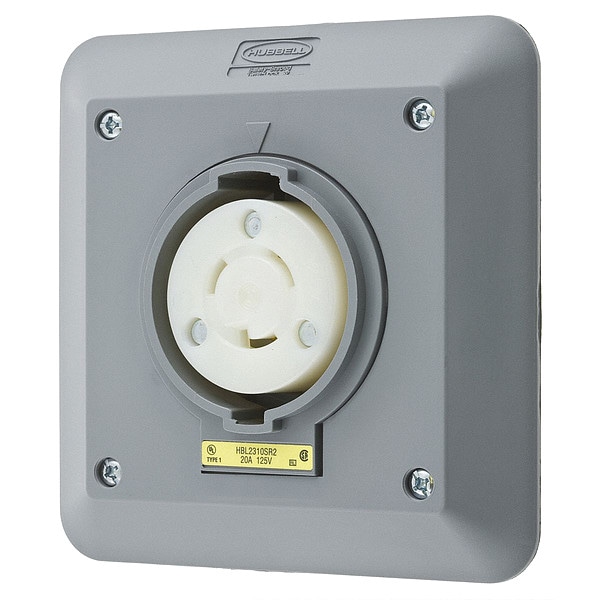

Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, Gray

Mfr # HBL2310SR2
Zoro # G2783821

35.79

Key Features

NEMA Receptacle Configuration

L5-20R

Current Rating

20 A

Voltage Rating

125V AC

Phase

Single

Number of Poles

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Details

MFR #: HBL2310SR2
Zoro #: G2783821
UPC #: 783585234045
Country of Origin: United States
Item: Locking Receptacle
NEMA Receptacle Configuration: L5-20R
Current Rating: 20 A
Voltage Rating: 125V AC
Phase: Single
Number of Poles: 2
Number of Wires: 3
Wire Connection Type: Screw Terminals
Grounding: Grounded
Housing Color: Gray
Mount Type: Flush
Cover Type: No Cover
Flange Type: Non-Flanged
Standards: CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties: Corrosion Resistant, Impact Resistant
Material: Impact Modified PBT
IP Rating: IP20
Grade: Industrial
Mounting Type: Semi Flush Mount
Wiring Style: Standard
Special Features: Corrosion resistant
Contact Material: Brass
For Location: Indoor
Maximum Operating Temperature: 167 Degrees F
For Environment: Dry
Polarized: Yes
AFCI: No
Minimum Operating Temperature: -40 Degrees F
Horsepower Rating: 1 hp
NEMA Enclosure Rating: 12, 4, 4X
Market: Industrial
Shrouded: Yes
Housing Material: Valox
Connection Orientation: Straight
Number of Gangs: 2
Spring Material: .031" Brass
Terminal Designations: Terminals identified in accordance with UL 498
Lock Type: Twist-lock
Flammability: VO or better
Amps: 20
UL 94 Flammability Rating: V-2

Description

• Accepts Hubbell shrouded and standard NEMA locking plugs
• Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
• Catalog number and color coded voltage rating are visible even when in use
• Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
