  11. Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals
This item is Discontinued.

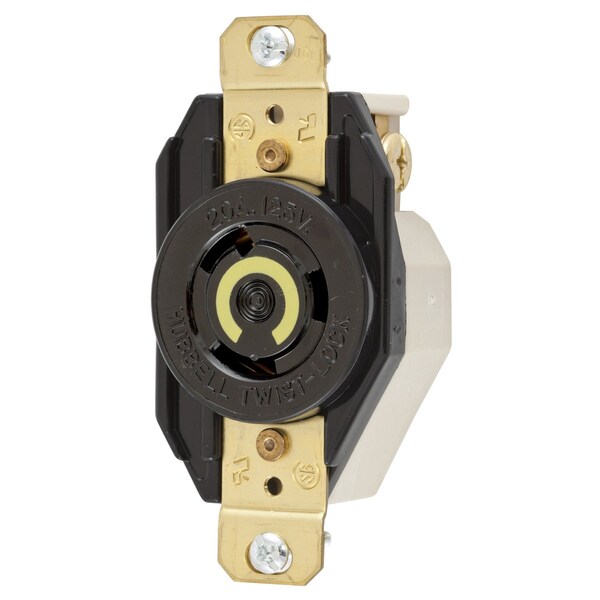

Hubbell Wiring Device-Kellems Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals HBL2310RT

Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals (Discontinued)

  • Mfr # HBL2310RT
  • Zoro # G700701792
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2310RT
Zoro #
G700701792
UPC #
783585234038
Country of Origin
United States

Dimensions

Wire Size
#14 to #8 AWG Copper Only

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
Standards
Certified for current interruption at full rated current, FED SPEC UL/CSA
Resistance Properties
Corrosion Resistant, Moisture Resistant
Flange Type
Non-Flanged
Special Features
Molded In or Stamped On
Material
zinc plated Steel
Wiring Style
Standard
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Lock Type
Twist-lock
Flammability
VO or better
Operating Temp.
Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact)
Temp. Rise
Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Base Material
Nylon Polyester
Spring Material
.031" Brass

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flush Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, RingTerminal, Black and White
