  11. Locking Receptacle, L7-20R, 20 A, 277V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

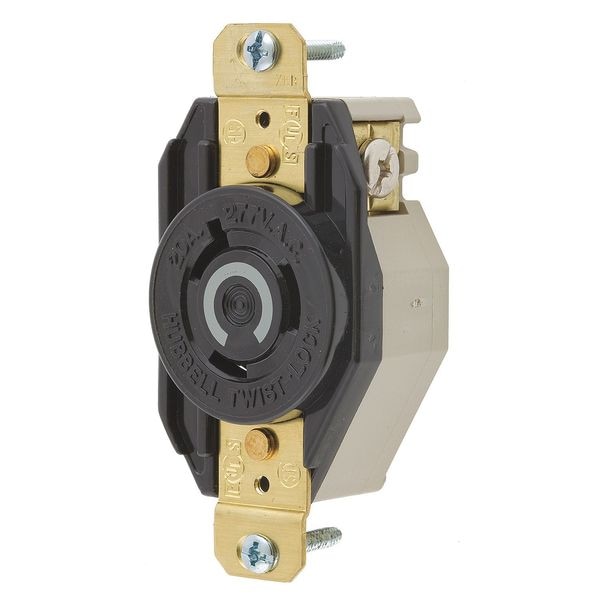

Hubbell Wiring Device-Kellems Locking Receptacle, L7-20R, 20 A, 277V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals HBL2330 - main

Locking Receptacle, L7-20R, 20 A, 277V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL2330

  • Zoro # G2810263

product price: $32.00
/ea

Key Features

NEMA Receptacle Configuration
L7-20R
Current Rating
20 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2330
Zoro #
G2810263
UPC #
783585235660
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#14 to #8 AWG Copper Only

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L7-20R
Current Rating
20 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
1
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Mounting Type
Flush Mount
Material
Thermoplastic Elastomer
Wiring Style
Standard
Special Features
Corrosion resistant
Grade
Industrial
Polarized
Yes
Horsepower Rating
2 hp
For Location
Indoor
Number of Gangs
1
Maximum Operating Temperature
167 Degrees F
Market
Industrial
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
For Environment
Dry
Housing Material
Nylon
Connection Orientation
Straight
Includes
Mounting Hardware
AFCI
No
Contact Material
Brass
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Lock Type
twist-lock
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Base Material
Nylon Polyester
Spring Material
.040" Brass
Amps
20

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Type Non-Flanged, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration L7-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Shrouded No, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass, Cover Type No Cover, Flange Diameter Not Applicable
