  11. Locking Receptacle, L8-20R, 20 A, 480V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

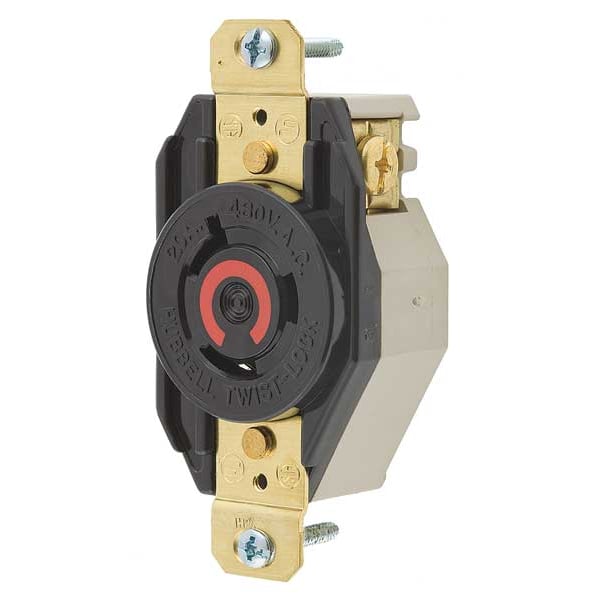

Hubbell Wiring Device-Kellems Locking Receptacle, L8-20R, 20 A, 480V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals HBL2340 - main

Locking Receptacle, L8-20R, 20 A, 480V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL2340

  • Zoro # G0776596

product price: $35.29
/ea

Key Features

NEMA Receptacle Configuration
L8-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2340
Zoro #
G0776596
UPC #
783585235691
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#14 to #8 AWG Copper Only

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L8-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
1
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Flange Type
Non-Flanged
Wiring Style
Standard
Mounting Type
Flush Mount
Material
Impact Modified PBT
Special Features
Corrosion resistant
Grade
Industrial
Horsepower Rating
5 hp
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Number of Gangs
1
For Location
Indoor
Includes Mounting Hardware
Yes
AFCI
No
For Environment
Dry
Housing Material
Nylon
Includes
Mounting Hardware
Market
Industrial
Polarized
Yes
Base Material
Nylon Polyester
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Terminal Designations
Terminals identified in accordance with UL 498
Lock Type
Twist-lock
Spring Material
.040" Brass
Amps
20

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Type Non-Flanged, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration L8-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Shrouded No, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass, Cover Type No Cover, Flange Diameter Not Applicable
