  11. Locking Receptacle, Non-NEMA, 10/15 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Black

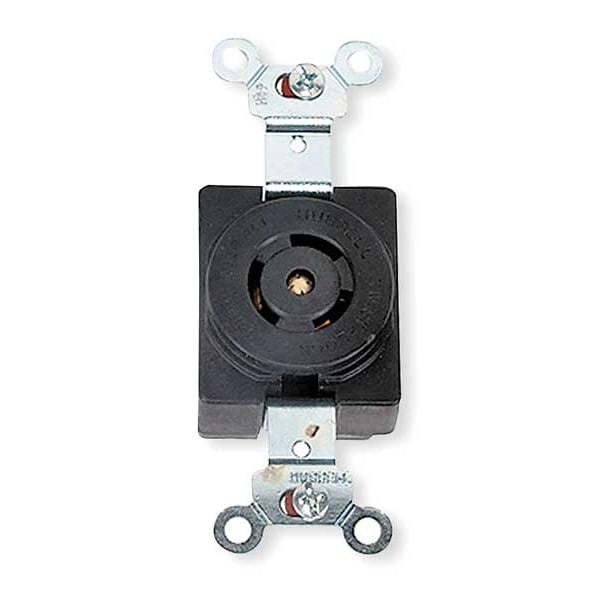

Hubbell Wiring Device-Kellems Locking Receptacle, Non-NEMA, 10/15 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Black HBL7582 - main

Locking Receptacle, Non-NEMA, 10/15 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Black

  • Mfr # HBL7582

  • Zoro # G2098442

product price: $37.25
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
10/15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7582
Zoro #
G2098442
UPC #
783585237718
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Wire Size
#18 AWG -#10 AWG solid or stranded copper wire only.
Length
3.28 in
Width
1.5 in
Height
1.19 in
Dimensions
3.28 in x 1.5 in x 1.19 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
Non-NEMA
Current Rating
10/15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Moisture Resistant
Flange Type
Non-Flanged
Wiring Style
Standard
Grade
Industrial
Material
Nylon
Mounting Type
Flush Mount
Shrouded / Non-Shrouded
Non-Shrouded
Special Features
Corrosion resistant
Minimum Operating Temperature
-40 Degrees F
For Environment
Dry
AFCI
No
Housing Material
Phenolic
Connection Orientation
Straight
Maximum Operating Temperature
167 Degrees F
Includes
Mounting Strap
For Location
Indoor
Contact Material
Brass
Number of Gangs
1
Polarized
Yes
Includes Mounting Hardware
Yes
Market
Industrial
Base Material
Black Polyester
Terminal Designations
Terminals identified in accordance with UL 498
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Spring Material
.031" Brass
Lock Type
Replacement-use
Amperage Rating
10/15 A
Application
Heavy Duty Industrial
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG -#10 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Amps
15/10
Voltage
125/250V AC
Color
Black
NEMA Rating
12, 4X
NEMA Configuration
Non-NEMA

Description

The HUBBELL 15/10A Locking Receptacle is an industrial-grade device intended for electrical connections in indoor, dry locations. This locking receptacle features a 3-pole, 3-wire configuration and supports voltages of 125/250V AC with an amperage rating of 10/15A. It is constructed from thermoset materials; includes corrosion-resistant components to enhance durability.


Key Features of the HUBBELL - 15/10A Locking Receptacle:

  • Amperage & Voltage: Rated for 10/15 A at 125/250V AC single phase operation.

  • Construction: Thermoset housing (phenolic) with black polyester base; includes corrosion-resistant zinc plated steel mounting strap.

  • Contact Material: Brass alloy contacts provide reliable conductivity.

  • Mounting Type: Flush mount design with included screw mounting hardware.

  • Wire Accommodation: Accepts #18 AWG to #10 AWG solid or stranded copper wire via screw terminals; terminals identified per UL498 standards.

  • Operating Temperature Range: Maximum continuous temperature up to 75°C (167°F), minimum -40°C without impact.

  • Dielectric Strength & Flammability: Withstands minimum dielectric voltage of 2,000V; flammability rated HB or better per UL94/CSA standards.

  • NEMA Enclosure Rating & IP Rating: Suitable for use in NEMA type 12 and 4X enclosures; IP20 rated when installed as specified by manufacturer guidelines.

  • Certifications: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and listed to UL498 standards.
